The life of a chukar gun

JLS

Well-known member
Joined
Mar 26, 2012
Messages
12,559
Location
Where the Wild Things Are

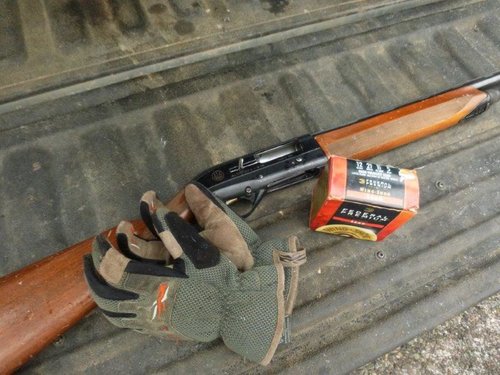

Is not an easy one. My Beretta AL 391 has seen some tough love for sure, from the duck marshes to the basalt cliffs of Hell's Canyon.

I took a few hard tumbles this year and decided that it was time to shed the ugly factory varnish.

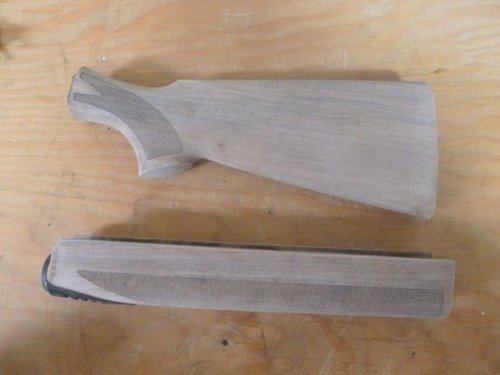

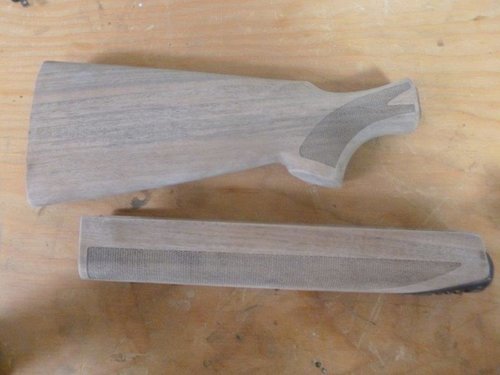

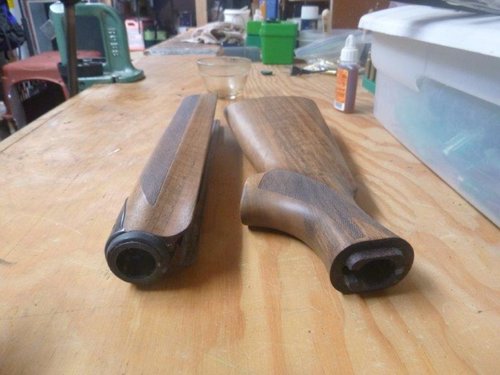

A few coats of Citristrip and we were down to this.

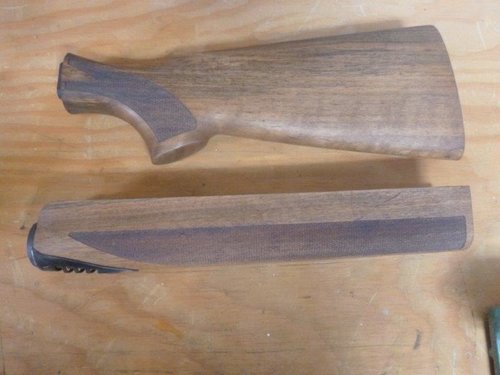

A couple of coats of oil and the checkering has been recut.

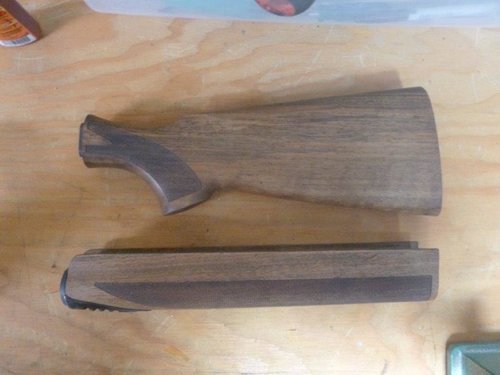

After a few more sandings.

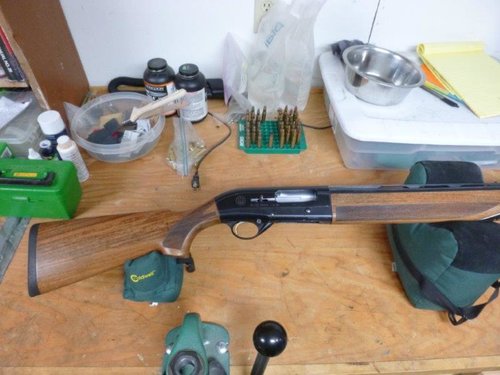

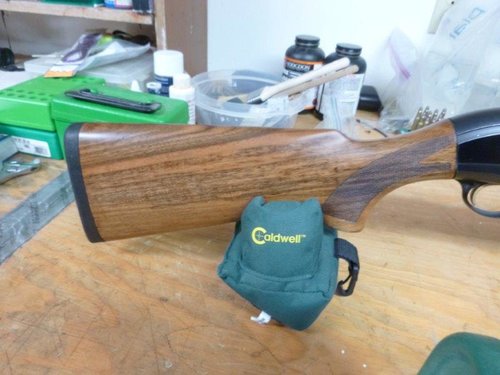

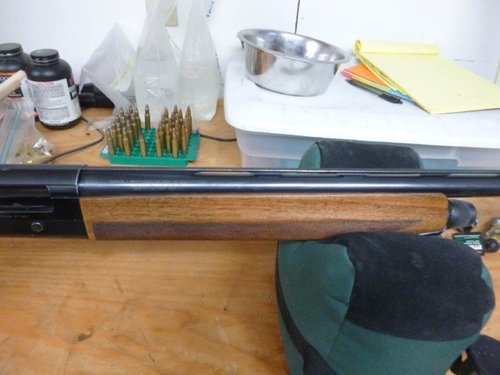

The final product.




Last edited:

Gr8bawana

Well-known member
Joined
Jul 14, 2013
Messages
4,331
Location
Nevada
Good looking gun. Your stock looks like new.
I have a Remington 1100 that I bought in 1980 and it wears all the bumps and scratches proudly. It still has a piece of rock imbedded in the stock from an Arizona Strip quail hunt where I took a pretty good tumble.


noharleyyet

Well-known member
Joined
Nov 15, 2004
Messages
27,978
Location
TEXAS
I bet you've told us but I'm too lazy to search your checkering methodology.That sounds like something I could make look like bad graffiti.

...nice job.


Ben Lamb

Well-known member
Joined
Aug 6, 2010
Messages
14,026
Location
Cedar, MI
Factory stock finishes these days are awful. Nice job bringing the life back to it.

What was your process?


1_pointer

Well-known member
Joined
Dec 20, 2000
Messages
18,116
Location
Indiana
Very nice! I'd love to buy a nice, light 20ga like that and put that much 'character' on it hunting birds. Well done!


JLS

Well-known member
Joined
Mar 26, 2012
Messages
12,559
Location
Where the Wild Things Are
I bet you've told us but I'm too lazy to search your checkering methodology.That sounds like something I could make look like bad graffiti.

...nice job.

Ken,

I use a single point checkering tool from Brownell's. The main requirements are:

1). Good light
2) Reading glasses
3) Lots of patience
4) A cold beer helps

I just run all of the lines with the tool. The trick is learning the right amount of pressure. Not enough and you don't really cut out the existing checkering. Too much and the tool gets away from you and gouges things.

It really isn't hard. If you can stay within the lines coloring, you can do this.


noharleyyet

Well-known member
Joined
Nov 15, 2004
Messages
27,978
Location
TEXAS
Ken,

I use a single point checkering tool from Brownell's. The main requirements are:

1). Good light
2) Reading glasses
3) Lots of patience
4) A cold beer helps

I just run all of the lines with the tool. The trick is learning the right amount of pressure. Not enough and you don't really cut out the existing checkering. Too much and the tool gets away from you and gouges things.

It really isn't hard. If you can stay within the lines coloring, you can do this.

Thanks...

I'm out.;)


JLS

Well-known member
Joined
Mar 26, 2012
Messages
12,559
Location
Where the Wild Things Are
Nice job, guns are supposed to look 'used"

The nice thing about oil finish is that it doesn't take away the character dings. I don't sand out any gouges or dents. You can still see the scratches and dents as they are darker than the wood. Years of reapplying oil over the new character marks that show up will only add to the "used" look of the gun.

Factory stock finishes these days are awful. Nice job bringing the life back to it.

What was your process?

Ben,

Strip down to bare wood (I don't sand at all, just use additional coats of stripper).

Add a liberal coat of oil, reapplying as it soaks in. This is where you really saturate the wood. Let sit 30 minutes and wipe off excess. Dry for two days.

Wet sand with 320 grit and oil. Let slurry sit on wood for 20 minutes, then wipe down with paper towel. Dry for two days.

Cut checkering.

Wet sand with 320 grit and oil, let slurry sit on wood for 20 minutes, then wipe down with paper towel. Dry for two days. Repeat two more times.

Do above step with 400 grit and oil and repeat 3-4 times.

Do above step with 600 grit and oil.

Dry for 3-4 days.

Rub a coat of oil on (not much oil, just wet your fingertips), rub hard enough to generate heat. Let sit for 20 minutes and lightly wipe down with paper towel. Dry for two days. Repeat 3-10 times.

Polish out with 0000 steel wool and/or rottenstone to achieve the desired gloss.

Any unexposed surfaces get coated with varnish prior to reassembly.

I used the John Kay Winchester oil on this gun. I was a little surprised how light it ended up being. It never really reddened up like the Model 70 did.


Ben Lamb

Well-known member
Joined
Aug 6, 2010
Messages
14,026
Location
Cedar, MI
Thanks. I'll have to try the Winchester oil. I've been reading up on other methods as well to get a redder finish. The Boiled Linseed Oil & Tru-oil finish isn't doing much for me these days.

What tool did you get for the checkering?

Nice work!


JLS

Well-known member
Joined
Mar 26, 2012
Messages
12,559
Location
Where the Wild Things Are
Brownell's s-1 cutting tool. The brand is Dem-Bart. While more time consuming, I like this process much more than True Oil.

As to the redness, I think I was limited more by the wood than anything. There's only so much you can do to mediocre wood. There's a reason you could buy these for 8 bills when I purchased it., and the cost savings was obviously in the quality of wood. Just for fun, I looked up some replacement stocks. While the wood grain was phenomenal, I would have paid more for the stock than I did the gun.

Last edited:

Ben Lamb

Well-known member
Joined
Aug 6, 2010
Messages
14,026
Location
Cedar, MI
Brownell's s-1 cutting tool. The brand is Dem-Bart. While more time consuming, I like this process much more than True Oil.

As to the redness, I think I was limited more by the wood than anything. There's only so much you can do to mediocre wood. There's a reason you could buy these for 8 bills when I purchased it., and the cost savings was obviously in the quality of wood. Just for fun, I looked up some replacement stocks. While the wood grain was phenomenal, I would have paid more for the stock than I did the gun.

Awesome. I'll put the cutting tool on my birthday list.

The brits used to use Alkanet to get a redder finish. Might be worth playing with.

A lot of modern stocks are using lesser quality wood. Which is unfortunate. Still, yours turned out nice, if a little blonde. The grain shows up well and the overall finish is excellent. Nice work.


JWP58

Banned
Joined
Apr 30, 2013
Messages
625
Location
In a van, down by the river
Ive redone about 6 wingmasters (the old 870 AP with corncob fore end). I used the Miles Gilbert refinishing kit from midwayusa.

All I can say is finish work is long and drawn out. Patience is definitely tested.

Great job.


Brittany Chukarman

Well-known member
Joined
Dec 16, 2003
Messages
1,615
Location
Richland,Or
That looks better than factory. I have a 70's Model 1100 that has at least 500 chukar days on it before I retired it and went to a lighter gun. I might give that a try next winter.


tarheel

Well-known member
Joined
Jul 7, 2010
Messages
2,090
Location
Piedmont region of North Carolina
Since I hunt in the wet fairly often I use a version of JLS's technique but seal and finish with a 50/50 mix of spar varnish and mineral spirits beginning with at least 3 coats on both the exterior as well as interior surfaces of the wood. When wet sanding I use a pad of hard felt about 3/8" thick under the sandpaper, sand with the grain then lightly wipe the slurry cross grain with a paper towel to fill the pores. Using the same mix I then do 6-7 coats with a fingertip dipped in the mix making sure to allow at least a day to dry. The mineral spirits accelerate penetration and drying time but 2 days drying time between coats won't hurt a thing.

Here's a link to the alkanet root oil if you want to red it up. https://www.google.com/url?sa=t&rct...181309&usg=AFQjCNFd9fcff2SUI9uxmik6aiRy_j34Zg
