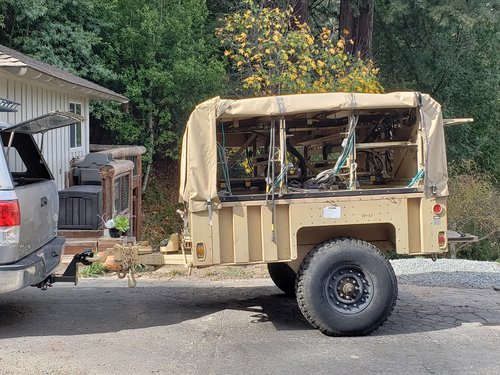

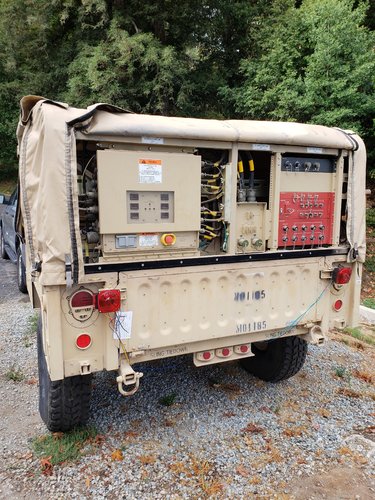

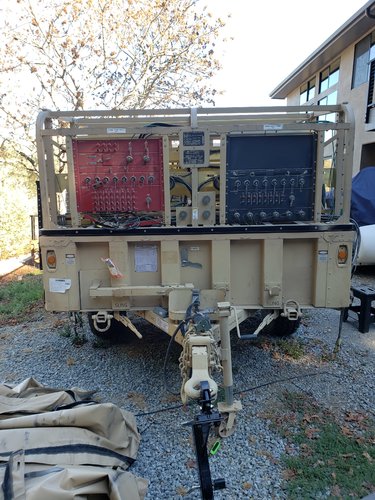

This fall I picked up a "Combat Operations Center" model of an M1102 trailer at auction and have been slowly working on getting it converted over for a hunting rig. I was able to get it at 82% off MSRP based on what the notes say the tax payer paid for it the first time around, in fact I "accidentally" bought a second one (which is a whole other story) so this one is my rough draft to find out what works and what doesn't then I'll do it all again.

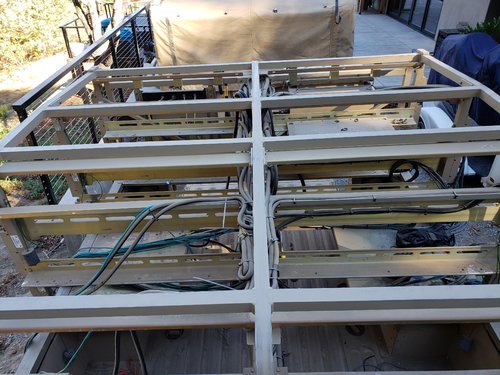

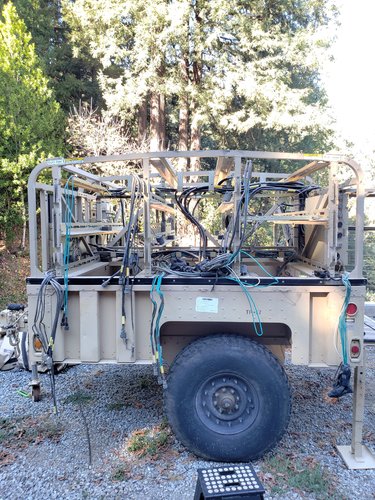

First was stripping all power and communications wiring which was snipping no less that 11,327 zip ties, and trying to untangle the mile or so of cable. Next was pulling out all the bonus aluminum racking so I can have better access to the core frame.....both the wiring and aluminum should be a decent yield at the scrap yard to off set my costs.

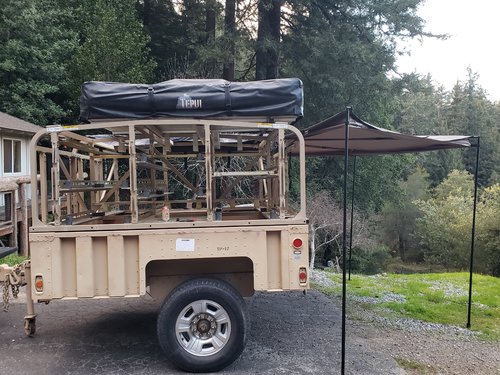

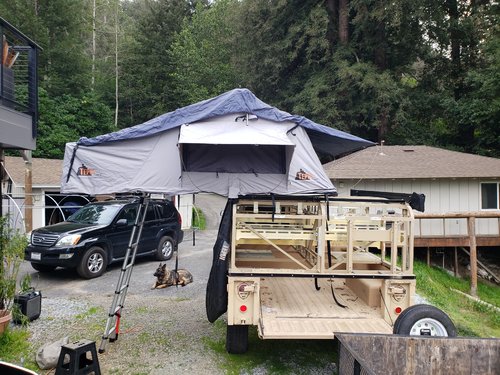

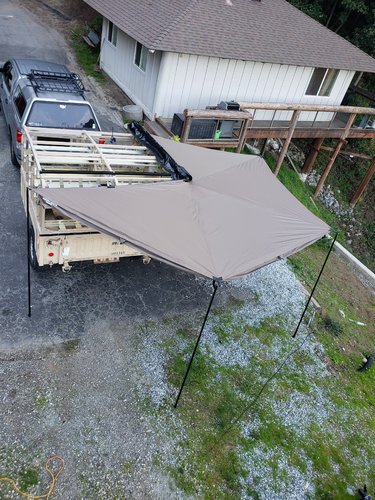

I found a Tepui "Ruggedized" Autana 4 person with zip in awning on Craigslist for another steep discount and bought a Rhino Rack Batwing on sale at Etrailer. Finally, I decided to ditch the Goodyear 37" tires, for a more sensible standard 32" off a Chevy HD (8 x 6.5" pattern)....again another steal off Craigslist because someone needed wheels for their Duramax. Selling the stock tires should get me a few bucks back too. It still has a pretty high tow point so I had to buy a 9" riser for the pintle hook to connect to the lunette. It still tows at a bit of an angle due to my soft springs on my Tundra but I am going to add an extra leaf soon so that should help a bit.

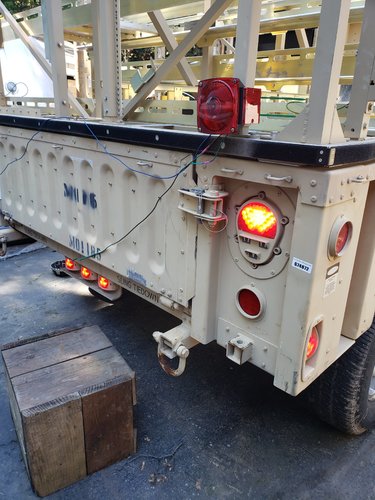

Finally I had to convert the 12pin plug to a 4 pin, fortunately Ebay fixed this for me pretty quick and to boot all the lights work. I still have a ways to go with trying to figure out how to put all my gear inside conveniently, where I want to put sliding drawers, kitchen etc. etc. But, for now it's mobile and functional and the first test is this weekend.

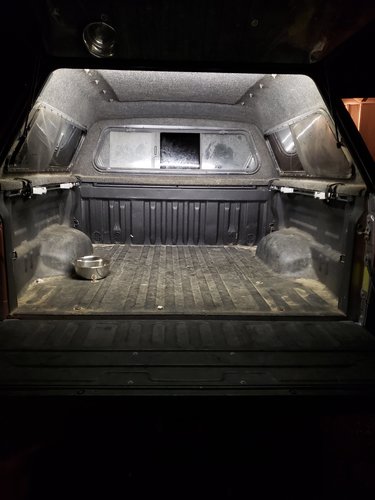

The last pic was a little modification I did in my truck. Tired of playing in the dark in my bed, I added a little LED strip of lights on the inside of the frame on my back window. Stupid simple modification that will be a welcome addition.

102804

102805


102806



102807


102808


102809

102811

102812


102813

102814

Last edited:

Gr8bawana

Well-known member
Joined
Jul 14, 2013
Messages
3,463
Location
Nevada
That thing looks pretty darn rugged for sure, you will be able to take it anywhere with no problem. As for the ride height issue, I read an article where they removed a 5" spacer from between the torsion axle and frame. If yours has that it would be easy for you to do the same.
I'm also looking forward to your finished trailer. Keep us posted.


jryoung

Well-known member
Joined
Jan 16, 2012
Messages
4,349
Location
Unable to determine due to velocity
That is going to be a sweet rig! You definitely found a good variant with that framework you can build off of, most don't have that.
Nope, it's so over built it's ridiculous. The core framework is awesome, and three different friends that are welding geeks all wet themselves when they saw the welds on the aluminum structure. "Do you have any idea how good these welds are and how hard it is to do with aluminum" or some sort of variant of that is what they all said.


kansasdad

Well-known member
Joined
Jul 30, 2011
Messages
3,990
Location
Wichita
Some rumors might get started about "revenuers" coming around if you keep the paint scheme and the military look going.

I imagine that this will end up being a sweet hub of outdoor activity once you get the kinks worked out.


LCH

Well-known member
Joined
Dec 9, 2013
Messages
3,025
Location
Southern Indiana
Looks like a neat project! Surprise you didn't solve the ride height issue by lifting the truck though :cool:
