Alaknak tent Side poles- how to make them collapsible?

[2rocky]

As I prepare my camp for packing in on horseback, I'm evaluating how to make things more packable. One aspect that I am looking to improve is making the side wall poles for my Alaknak 12x12 tent more compact for pack horse travel.

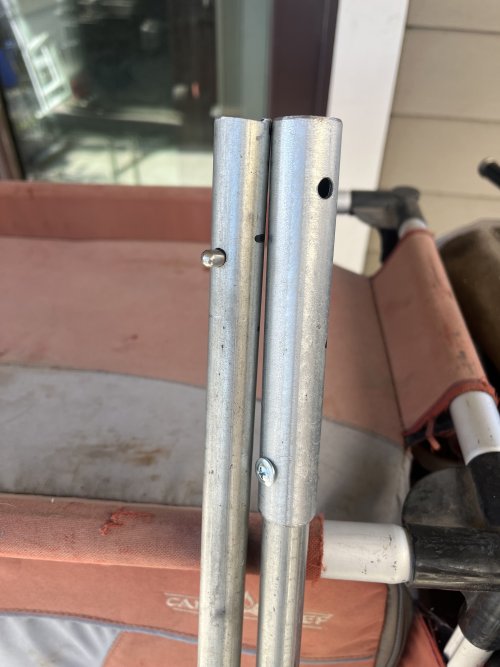

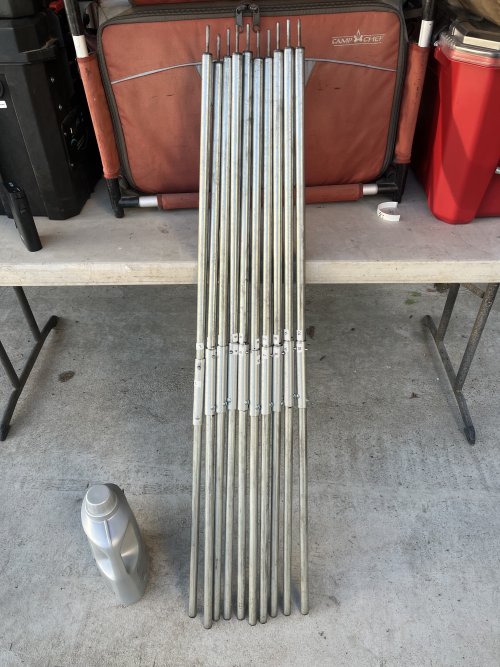

I've noticed that the poles fit inside a 3/4" pvc pipe so I am considering cutting the poles in half and sleeving the joint with either 3/4 inch emt or pvc. Thus making the broken down poles 26 inches long or so. Much more packable.

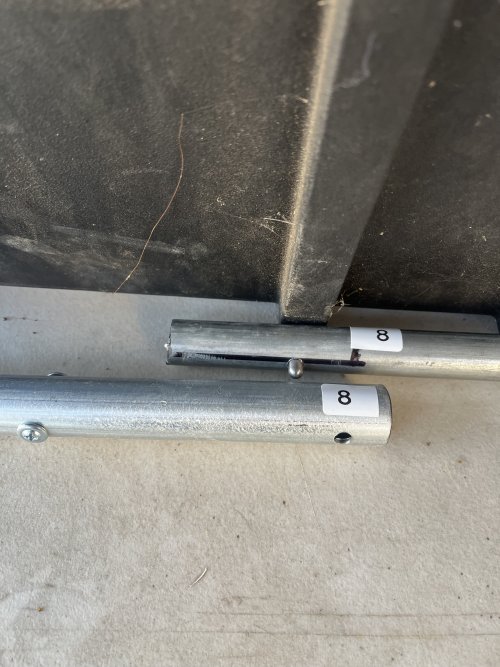

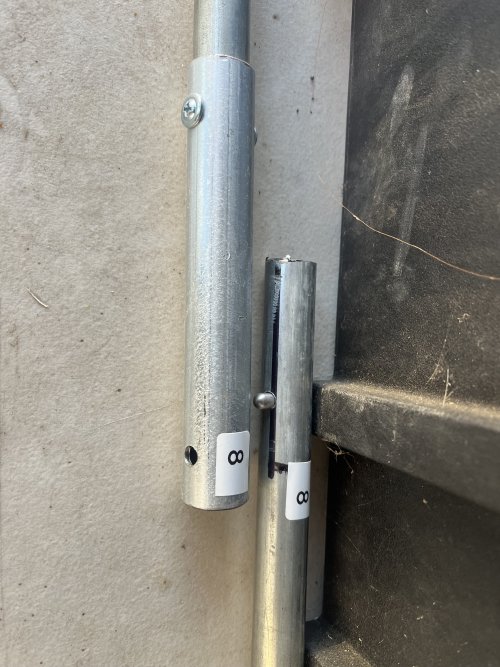

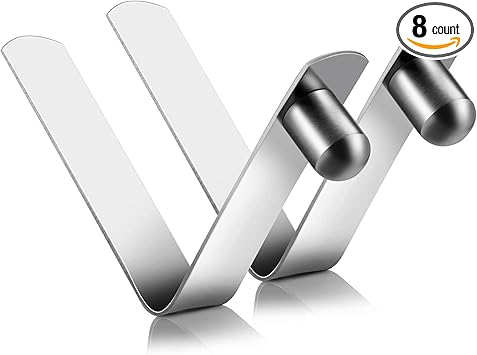

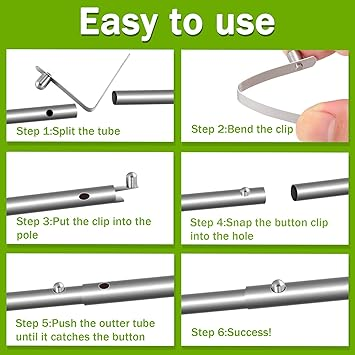

For reattaching the poles I've ordered spring clips to go inside the pole and pop into a hole on
the sleeve. I'd probably rivet the other end.





Thoughts on whether to use 3/4 emt or PVC for the sleeve, and how long to make the sleeve?



[Wild Bill]

No clue but report back with what you find out works well. I've thought about doing similar to my wall tent, but haven't been convinced it wouldn't compromise the structural integrity of the frame.



[2rocky]

No clue but report back with what you find out works well. I've thought about doing similar to my wall tent, but haven't been convinced it wouldn't compromise the structural integrity of the frame.

what size tubing do you have NHY?

check this YT page out for ideas https://www.youtube.com/@MakerPipe

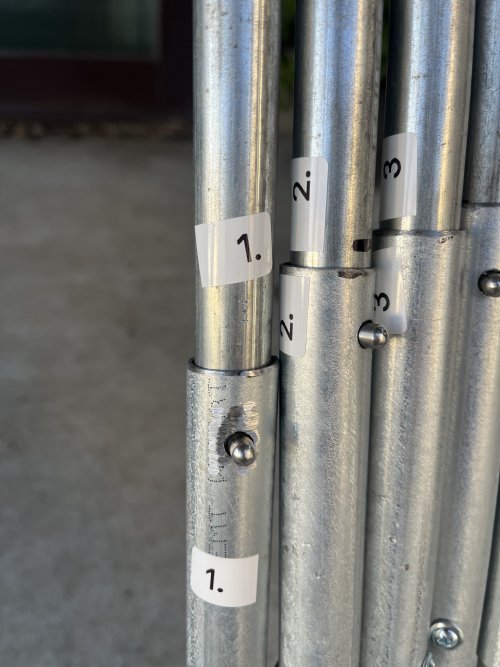

In my case the sidewall poles are mainly to keep the walls rigid but the corners DO have more tension on them . Perhaps Oi will mark those and make the collar sleeve longer on those 4....

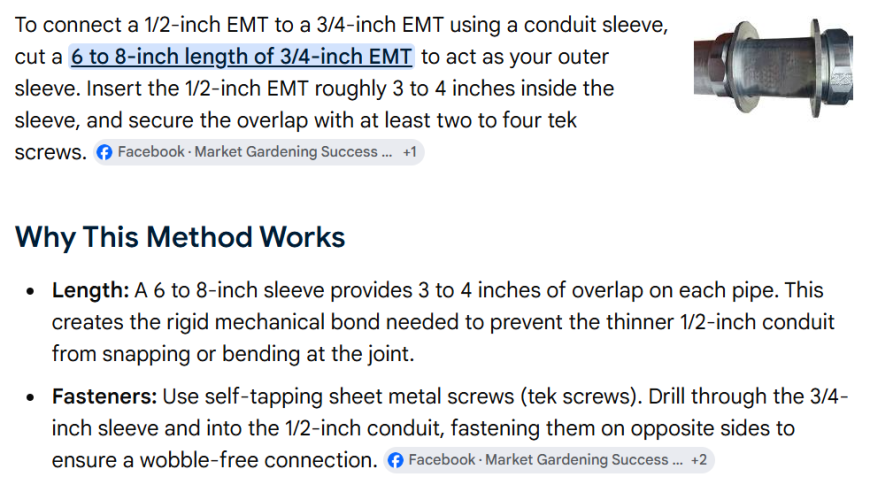

Advice from Copilot:
