Yeti

180 interbond/accu-bond expansion tests

snuffy1

New member
Joined
Sep 5, 2001
Messages
25
Location
Oshkosh Wi.
And the results are in------------well some of them anyway. I’ll call this my shake down cruise. LITERALLY! There is a bunch of energy being released when a bullet hits those jugs. The board I used to lay the jugs on started coming apart after the third hit. I ended up nearly breaking it in half! There went $30.00 worth of lumber and a couple hours and hardware to build. Back to the drawing board. Pics to follow.

As to the results, well here goes. I got to test 5 different bullets. 1. the 180 Hornady interbond. 2. the 180 Nozler accu-bond. 3.The 180 Hornady SST. 4.The 180 Remington core-loct round nose. 5. The 190 sierra match king.

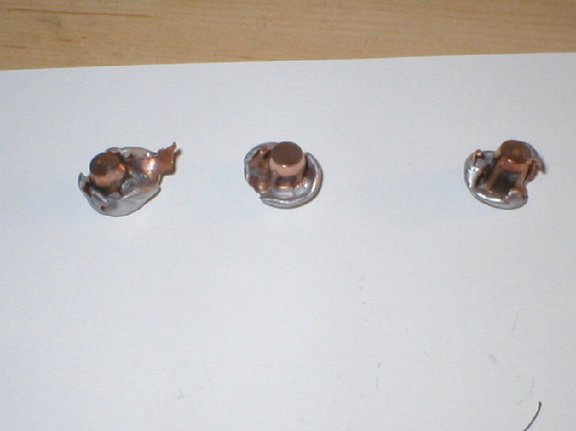

Here’s the 3 Nozler accu-bonds



retained weight, 119.1, 121.7, 121.9 Expansion .875, .645, .665. Percentage of weight retention is around 67% The .875 is the one on the left with a piece of jacket sticking out, otherwise it would be like the other 2. Now for where a person has to choose one over the other,(AB over IB). All 3 AB’s went through 3 jugs and into the fourth. The interbond was found in the third jug, just like the 165’s I tested last summer.

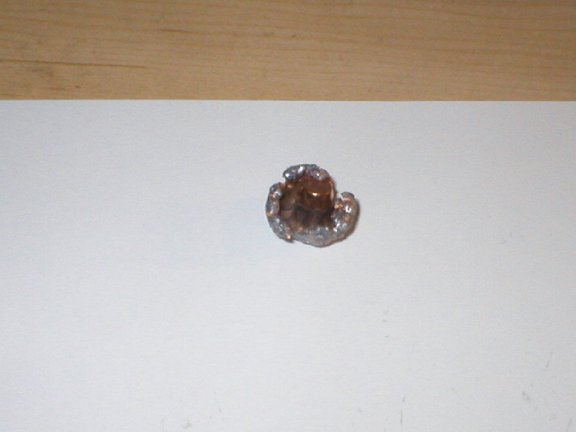

Here’s the only interbond I could capture. Problems with the stand caused one other one to be lost in the grass. Retained weight 140.1, expansion .715, weight retention, 77%. Like I said it and the lost one only penetrated 3 jugs.

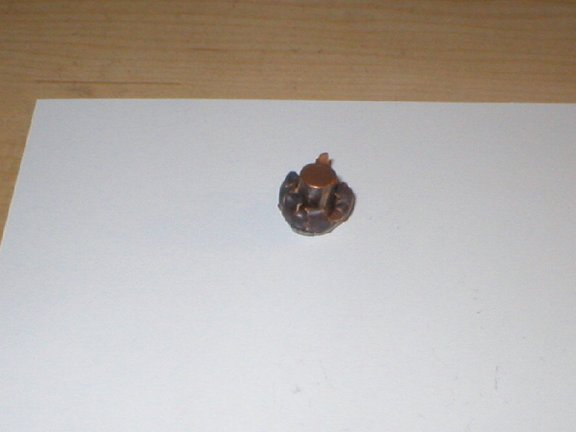

I had a partial box of 25 year old Rem core-locts sitting around. I thought, ”I wonder how the dark ages technology compares with today’s newest?” Well it fits between the interbond and accubond. Ret. Weight. 131.0 expansion .625, 72% retention. Also the prettiest most uniform mushroom of all.

No pics for the MK! Couldn’t find enough of 2 bullets to weigh or take pics of. Total disintegration! Same for the SST. Blown to pieces, just shards of lead and copper jacket in the last,(third), jug.

All loads were 68.5 grains of R-19, except the MK was 66.0 R-19. Velocities were between 3000 and 3050 fps @ 15 feet/muzzle.

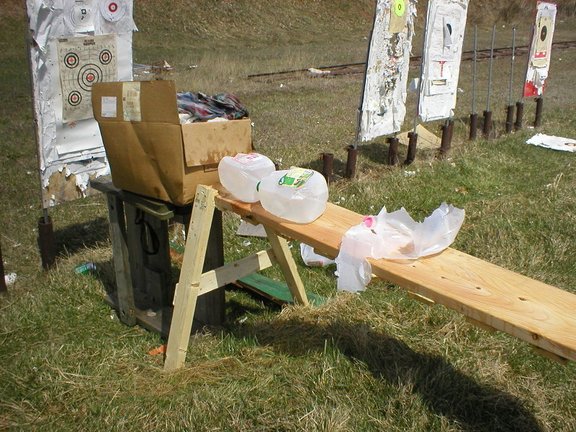

Oh here’s the set-up;



This WAS a 10 X 2 , 6 feet long. The legs were nailed, screwed and gorilla glued to the notched ends of the board. All I have left are the legs! The board was cracked and nearly broken in half right under where the first jug was sitting. I screwed and gorilla glued 1 X 4 pine under the board to keep it from splitting lengthwise. Oh well, next time I may just make it out of steel!


1_pointer

Well-known member
Joined
Dec 20, 2000
Messages
18,108
Location
Indiana
Those Accubonds sure look like winners! I'm contemplating using them as my go-to bullet in my .338. That BC of .550 doesn't hurt.


danr55

Active member
Joined
Dec 18, 2000
Messages
4,328
Location
Mesa, AZ
The Accubond bullets are the result of a proven technology originally used to make the Trophy Bonded Bearclaw bullets. They should perform every bit as well as this well known top end performer. I just wish they would extend the list a bit.. Like to include several 6.5s and an 8mm or two..

:cool:


1_pointer

Well-known member
Joined
Dec 20, 2000
Messages
18,108
Location
Indiana
TBBC have a solid shank and the AB does not.




In theory the TBBC should penetrate more as the solid shank retards expansion at a given point and it retains more weight. However, the AB has a vastly better BC so it will fly a bit flatter & buck wind better.


danr55

Active member
Joined
Dec 18, 2000
Messages
4,328
Location
Mesa, AZ
The statement that the technology used to make the TBBC (Electro-chemical bonding of the core to the jacket) is similar, is correct. The design of the Accubond jacket retards the possiblity of over-expansion (observe the test bullets in the first part of this thread.)

:cool:


1_pointer

Well-known member
Joined
Dec 20, 2000
Messages
18,108
Location
Indiana
Just stated design differences. I see one as a super-duper smashem'up close kinda thing and the other more suitable for longer ranges. I wonder if an RUM could peel an AB back more??


snuffy1

New member
Joined
Sep 5, 2001
Messages
25
Location
Oshkosh Wi.
WH, WORK? That's a lot of fun! I really enjoy experimenting, keeps things interesting.

I wish I could get a closer pic of the front of the mushroom on the accu-bonds. There seems to be two seperate cores, or different hardness in the core. Hard to explain but the core does not seem to be homogenous. The interbond on the other hand semms to be all one consistancy.

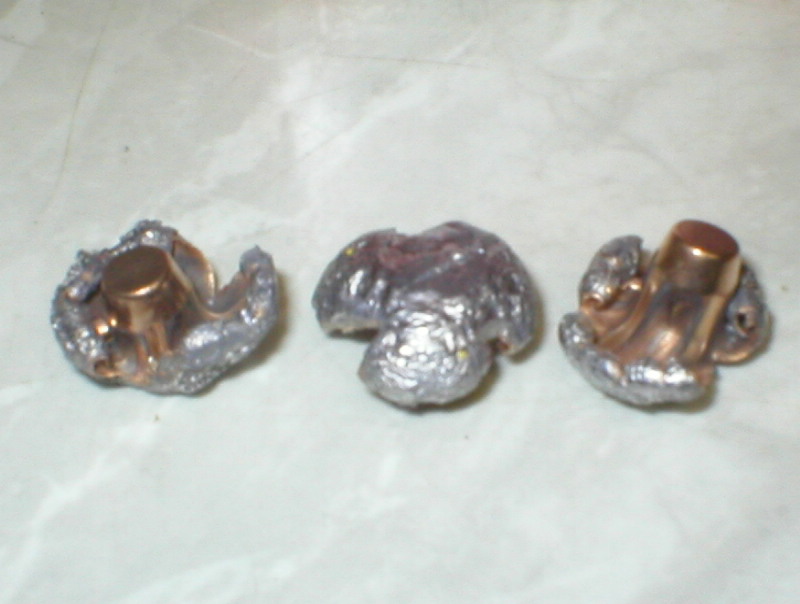

Here's the test I did last summer with the 165 interbonds.



Better weight retention, larger mushroom. I'll try to take a closer pic of the front of the AB's.

As for that @&*%$# board, I would imagine the board does a whiping motion when that much pressure/force happens in one spot. Next time I will run 2X4's along the edges AND accross underneath. Maybe I will try something to cushion the jugs too. That gorilla glue is too brittle to be any good.

1 pointer, how much could you add to 3050 with your RUM?


1_pointer

Well-known member
Joined
Dec 20, 2000
Messages
18,108
Location
Indiana
Snuffy- Don't have a RUM. Would just be curious is all. I've read of reports of the Swift Sirocco no penetrating all that well due to its HUGE expansion. These two seem to have that problem licked. I think either of these are excellent bullets, the AB especially so. From others testing them, their penetration has been w/in a c-hair of like weight partitions.
