Jerry Can Rack?

Sheltowee

Well-known member
Joined
Jun 29, 2022
Messages
664
Location
The Front Range
I'm wanting to install a jerry can rack in the back of my Tacoma using the existing rail system. Anyone have a favorite product or other recommendation?


I have a Rotopax gas container for my ATV when we ride the Colorado Alpine loops but only bungee it. The rack and retainer kit would be better.

I think you are going to have to make your own Cleats to attach to...I stole this from a google search...

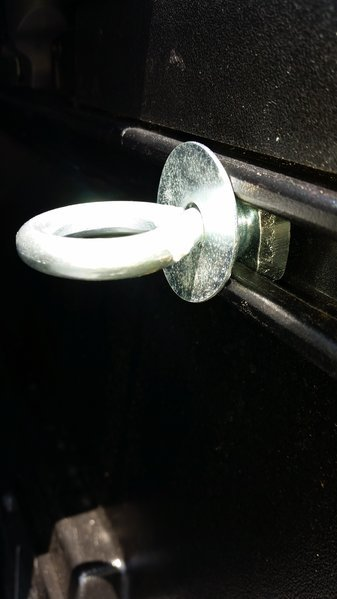

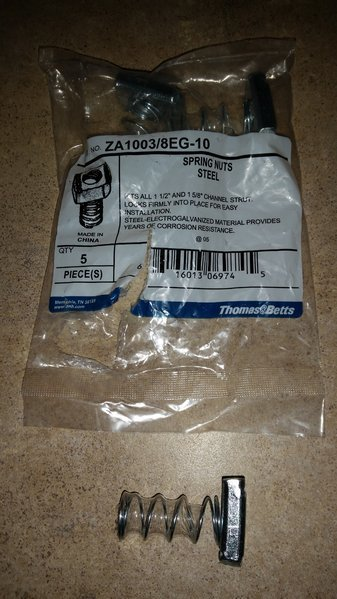

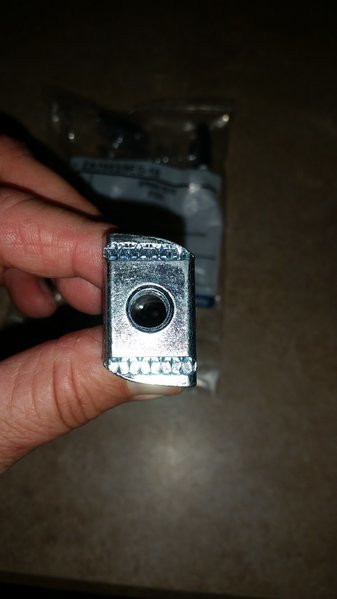

3/8" × 2.5" eye bolt, 3/8" fender washer, steel spring nuts (found in the electrical section at Home Depot). Place the steel spring nut in the channel, put the fender washer on the eye bolt and thread. The steel nut will angle a little in the channel when tightened. Very secure, unloosen to slide where you want it in the track. The spring gives the nut a little tension. Far superior to the stock Toyota plastic. Should work awesome!





I think if you replaced the Fender washer with some steel plate with holes drilled where needed, you can attach any rack you want to that..
