LuketheDog
Well-known member

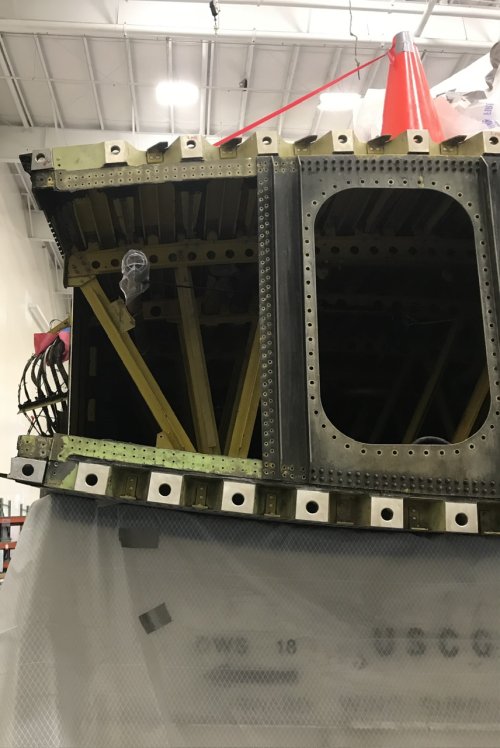

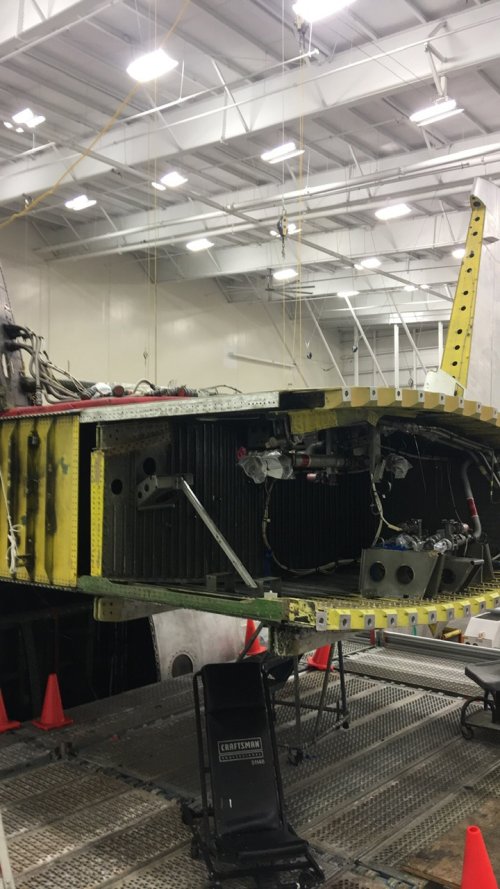

A wing from what? That thing is big!
np307
Well-known member

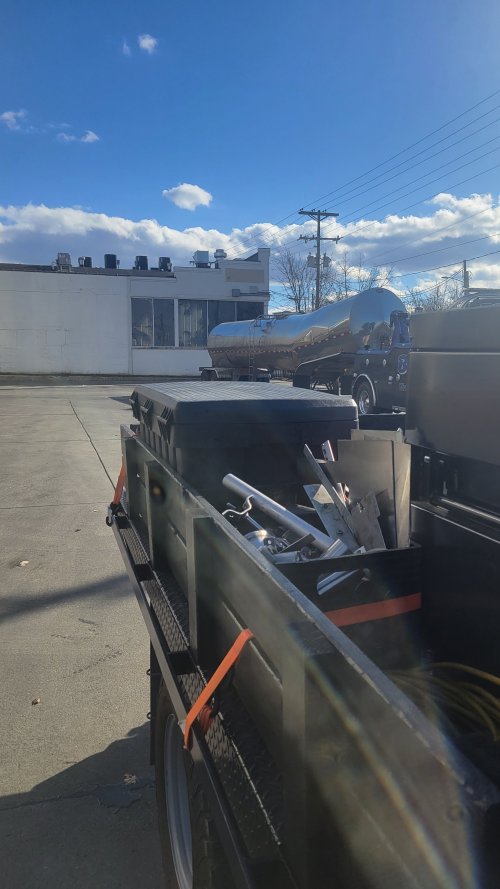

Been a wild week over here. This tanker is what happens when a positive displacement pump starts moving milk and the hatch on the tank isn't vented. Those big pd pumps just do not care what's happening, as long as there's liquid they are going to move it. Sucked a vacuum and collapsed the tank.

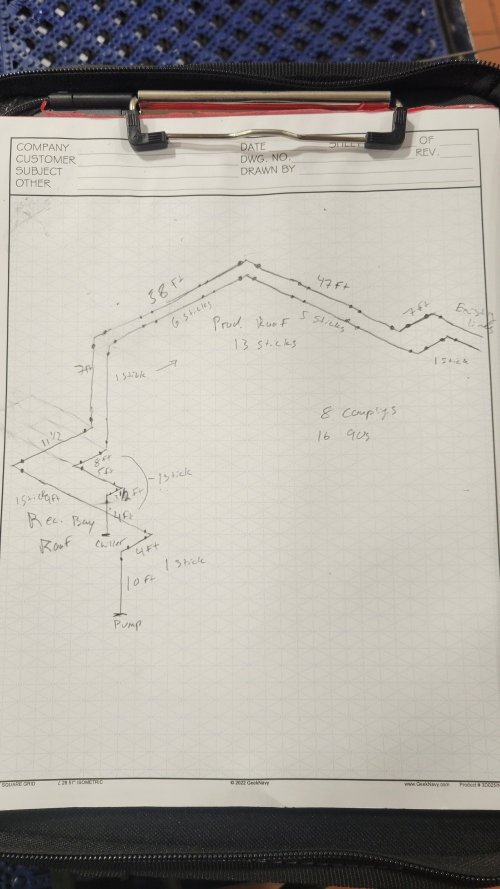

Then at another plant we started a huge piping job that we are doing in megapress. 4 inch pipe, all pressed fittings except for a couple specialty connections. Just a picture of my rough print for now.
And we've got a helper now. Not sure if he will stick around but it's nice to have another set of hands to do stuff while I'm welding.
Then at another plant we started a huge piping job that we are doing in megapress. 4 inch pipe, all pressed fittings except for a couple specialty connections. Just a picture of my rough print for now.
And we've got a helper now. Not sure if he will stick around but it's nice to have another set of hands to do stuff while I'm welding.
Goodfish
Well-known member
OK my metalworking friends—here is the challenge. I have about 1500 one eighth inch holes to drill horizontally into stainless steel sheet metal. It’s wearing my guys out not to mention drill bits. Does anybody here have any tips for the best bits and techniques for light gage SS drilling as well as has anyone seen anything like a horizontal drill press? Mag drill won’t work because it is stainless and also the surface where we are drilling is recessed so a vacuum attachment won’t work. Thanks!
Redmt
Well-known member
Cobalt or carbide drill bits and tell the guys their lucky to have a job.
I like to use Terry bits on a chucking spud drilling 301 and 321 stainless paired with a 20v battery drill.
I have used a ton of cobalt bits on it too, high speed stainless bits suck and hate using them.
What kind of stainless? 301 full hard drills better since it will move material out whereas when I drill 301 1/4 hard it wants to be "gummy" and push metal and make burs more than cut material out of the way.

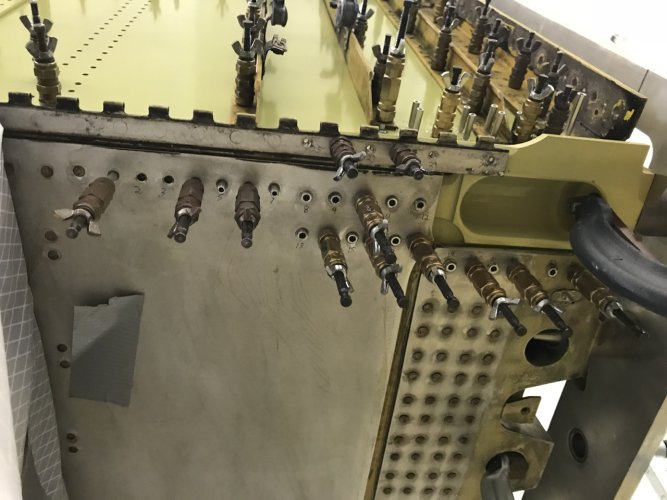

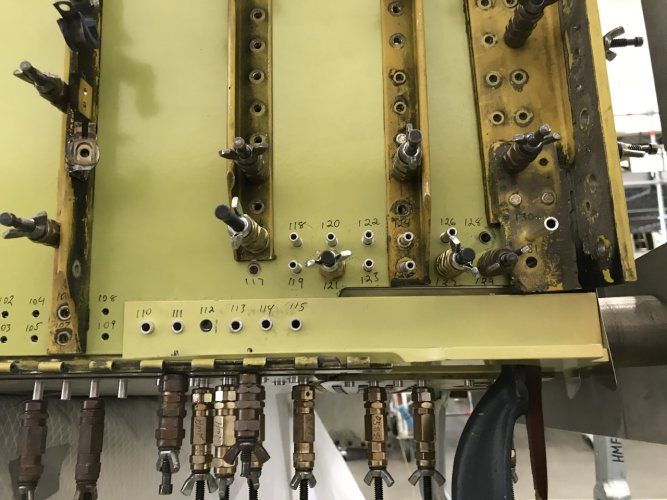

Working on airplanes I have very tight tolerances on holes and usually start small with a #40 hole(3/32) and then use dual marginal drill bits to step up to a #30 hole(1/8) to create a cleaner hole, if they go to 3/16 then I use reamers for the close tolerance.
Reference #40 is 0.098" compared to 3/32 at 0.0938" and #30 is .1285" compared to 1/8 at .125"
The threaded 1/8 Terry bit
Chucking spud
Dual marginal step bit
Piloted Double Margin Drills
<ul> <li>Designed for close tolerance drilling in titanium, stainless, heat treated material and aluminum alloys. When the drill point penetrates enough for the second margin to contact the wall of the hole, the point is stabilized and true cylindrical geometry is established. Smooth accurate...
www.panamericantool.com
Also have seen the machinist use started bits to poke holes, not what they are designed for but if it works it works.
McMaster-Carr
McMaster-Carr is the complete source for your plant with over 595,000 products. 98% of products ordered ship from stock and deliver same or next day.
Last edited:
trackerbacker
Well-known member
- Joined
- Jun 30, 2023
- Messages
- 531
If this has been touched on, excuse me.
But the conviction in this statement, tells me this should be #1 for you, not #4. Moot point yes, but clearly this is where your heart and mind is, and that alone is enough to warrant for it to always be stated first and foremost with that conviction, not fall be the wayside as a tertiary reason.
Good on you, and best of luck in your chosen endeavor.
np307
Well-known member
Thanks. I wasn't necessarily trying to rank them in order of importance, but that's a good point.
trackerbacker
Well-known member
- Joined
- Jun 30, 2023
- Messages
- 531
Hah I was trying to convey that I imagine it was arbitrary....but gave up and ran with what I had typed
Goodfish
Well-known member
Much appreciated! I have never heard of a Terry Bit. This is either 304 or 316 I will check. More stuff to try. Thanks!I like to use Terry bits on a chucking spud drilling 301 and 321 stainless paired with a 20v battery drill.
I have used a ton of cobalt bits on it too, high speed stainless bits suck and hate using them.
What kind of stainless? 301 full hard drills better since it will move material out whereas when I drill 301 1/4 hard it wants to be "gummy" and push metal and make burs more than cut material out of the way.
Working on airplanes I have very tight tolerances on holes and usually start small with a #40 hole(3/32) and then use dual marginal drill bits to step up to a #30 hole(1/8) to create a cleaner hole, if they go to 3/16 then I use reamers for the close tolerance.
Reference #40 is 0.098" compared to 3/32 at 0.0938" and #30 is .1285" compared to 1/8 at .125"
The threaded 1/8 Terry bit
Chucking spud
Dual marginal step bit
Piloted Double Margin Drills
<ul> <li>Designed for close tolerance drilling in titanium, stainless, heat treated material and aluminum alloys. When the drill point penetrates enough for the second margin to contact the wall of the hole, the point is stabilized and true cylindrical geometry is established. Smooth accurate...
Also have seen the machinist use started bits to poke holes, not what they are designed for but if it works it works.
McMaster-Carr
McMaster-Carr is the complete source for your plant with over 595,000 products. 98% of products ordered ship from stock and deliver same or next day.www.mcmaster.com
Your welcome.
The Terry bit name I think is aviation specific. Most people would call them threaded cobalt bits, and there are carbide ones as well.
np307
Well-known member

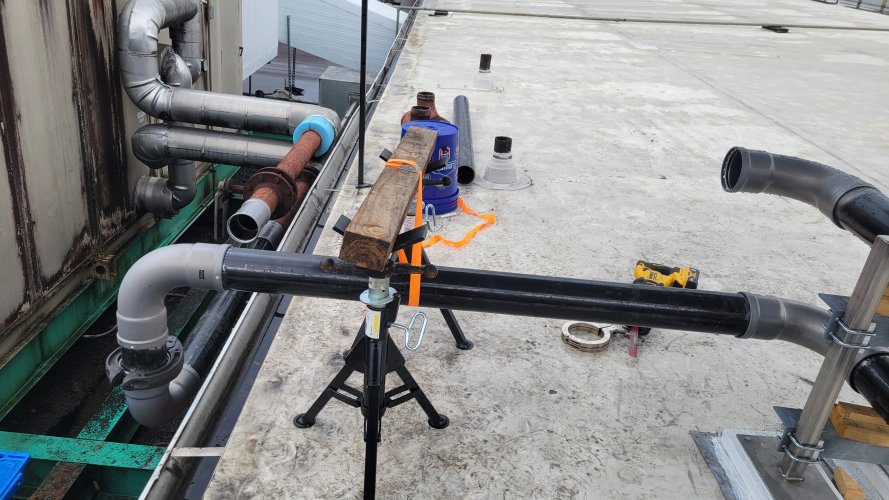

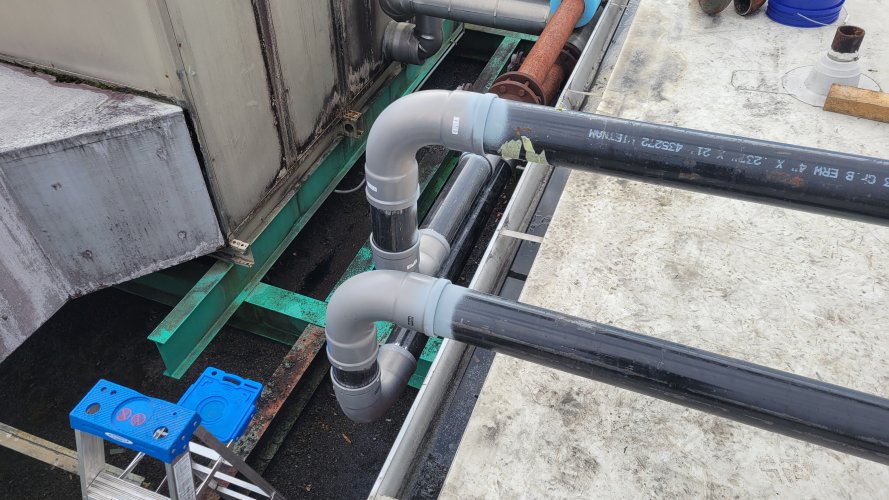

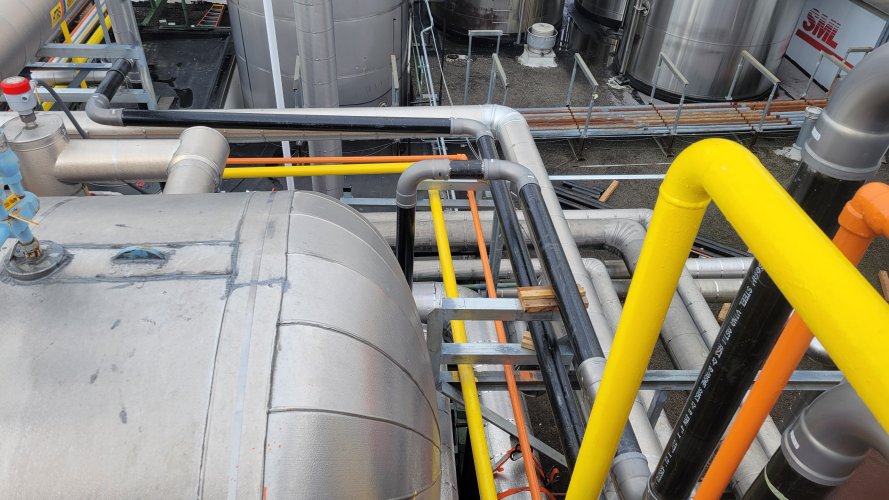

Today we finally tied in the glycol lines that we ran in 4" megapress. I'm still not sure about it, thats a lot of faith to put in a pretty light gauge fitting with an o-ring. But it certainly went together way faster than even a team of welders 3 times our size could've done it.

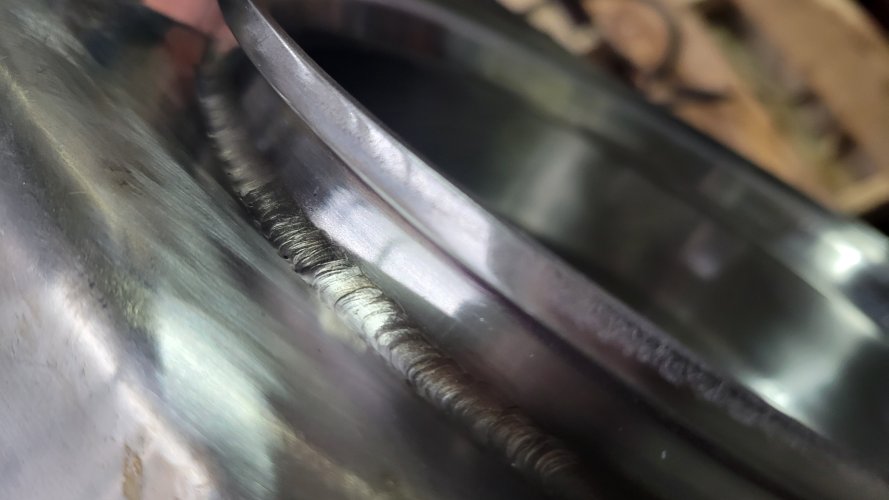

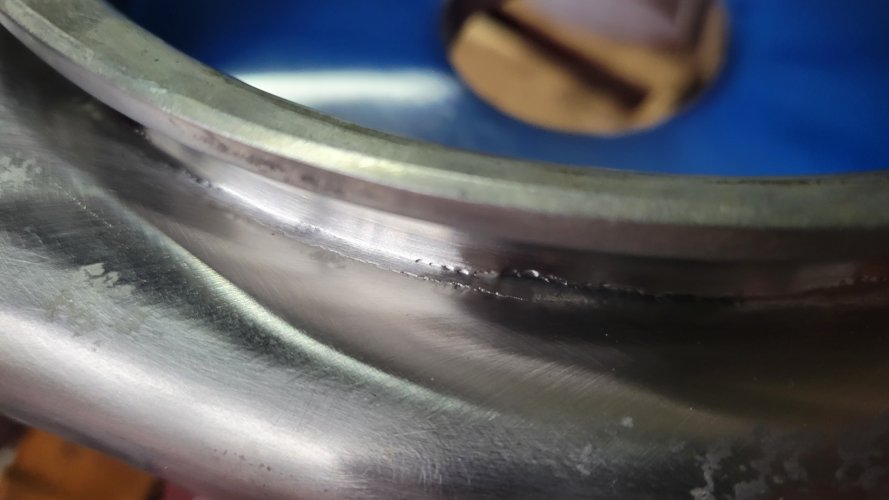

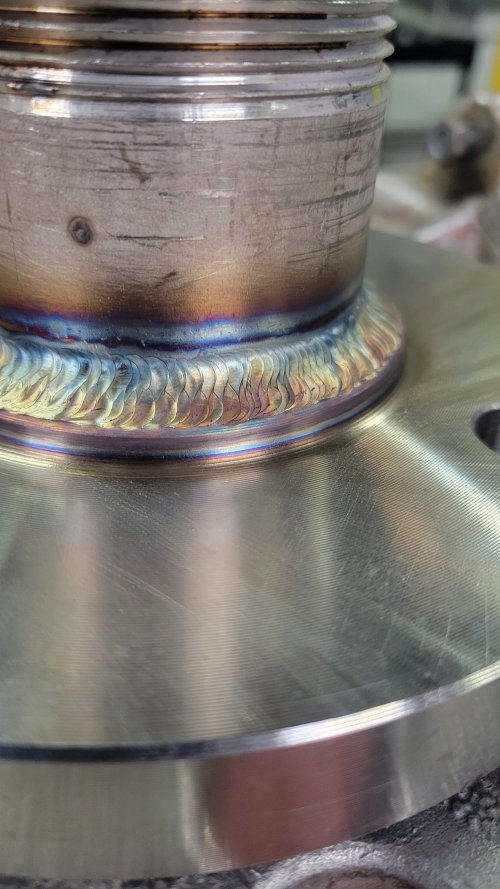

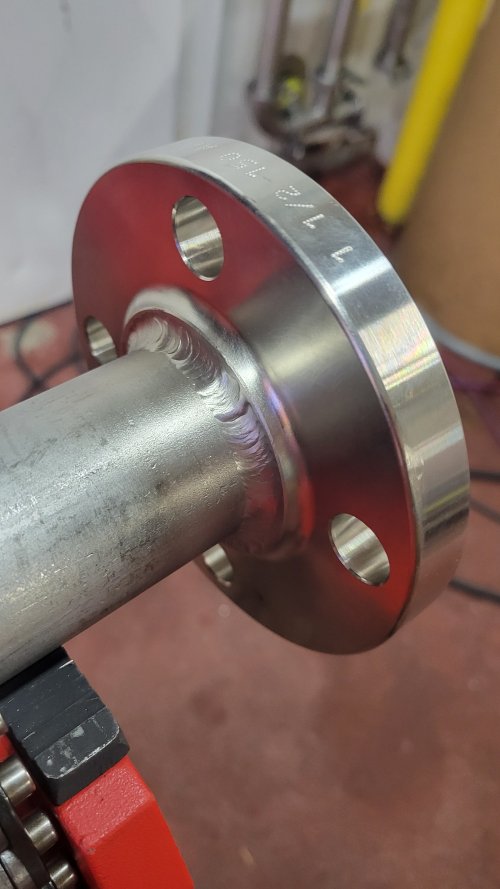

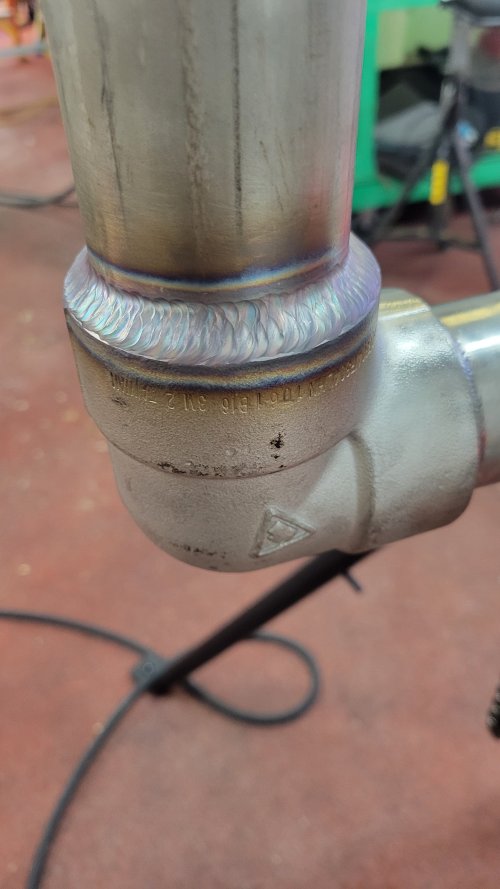

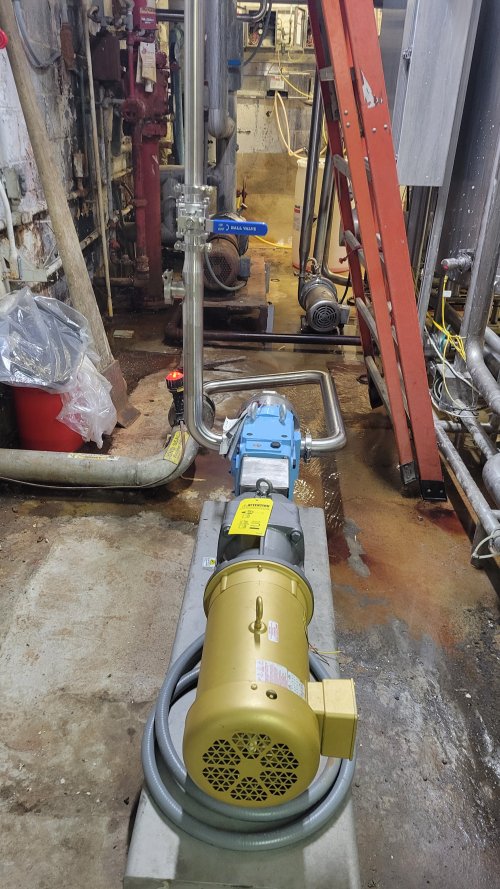

Put in a new sugar pump on Tuesday, 15 sanitary welds in a day. We also have been running new product lines in a small condiment facility so I have my first coupons on file with a company (most of our customers don't ask for a weld test coupon). Still a bunch of work on the horizon, got a new guy who may be coming on full time and learning the sanitary side of stuff, he already has some tig experience and seems to be pretty capable. Tomorrow we had someone cancel so it's shop work unless somebody calls broken down. I'll probably be practicing my 3/4" sanitary welds to finally get certified.
Put in a new sugar pump on Tuesday, 15 sanitary welds in a day. We also have been running new product lines in a small condiment facility so I have my first coupons on file with a company (most of our customers don't ask for a weld test coupon). Still a bunch of work on the horizon, got a new guy who may be coming on full time and learning the sanitary side of stuff, he already has some tig experience and seems to be pretty capable. Tomorrow we had someone cancel so it's shop work unless somebody calls broken down. I'll probably be practicing my 3/4" sanitary welds to finally get certified.
np307
Well-known member

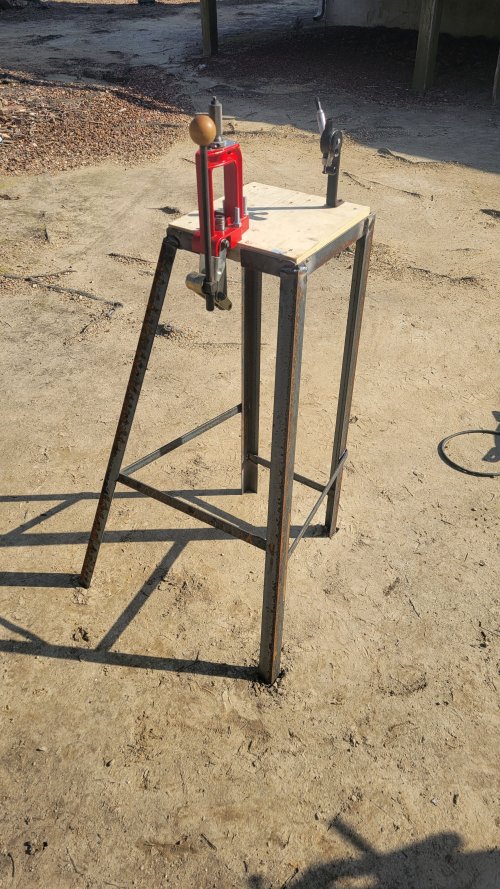

Went full janky welder mode this afternoon. Been wanting to build a stand for my reloading press, my boy played hard all morning so I knew I was going to get a long nap out of him, so I went into speed production mode. Very wide tolerances here, nothing needed to be straight or square. I only had 3 requirements: 1) the already assembled plywood base fits snugly 2) the stand isn't tippy 3) I can sit on a stool or stand to operate the press. I succeeded on all 3.
np307
Well-known member

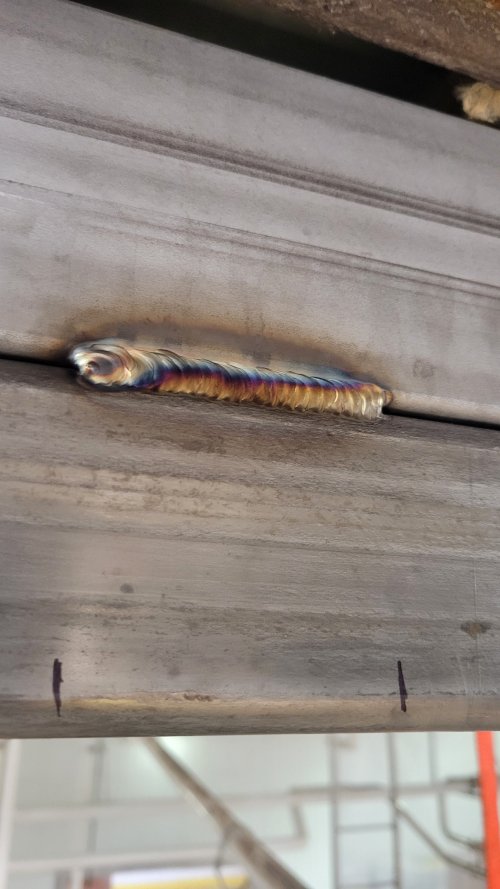

Running wide open the last two days. Replaced steam lines to 3 heat exchangers on Wednesday, no telling how many hours of prefab we had and then it was a twelve hour day to get two of them running. The third one got finished today. I also had to go weld something I can't really show/talk about. It was 3" stitch welds and if you add all the stitch welds up it was 16'. All in a scissor lift over welding above my head.
D
Deleted member 13457
Guest
Don’t know how I missed this. Amazing work!
Mallardsx2
Well-known member
- Joined
- Apr 4, 2015
- Messages
- 3,528

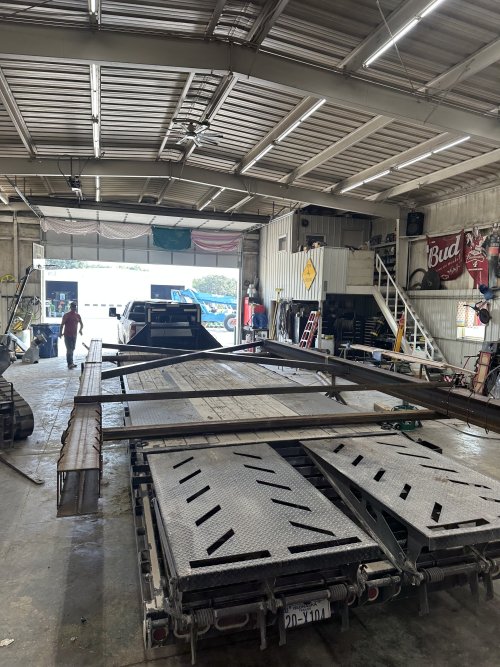

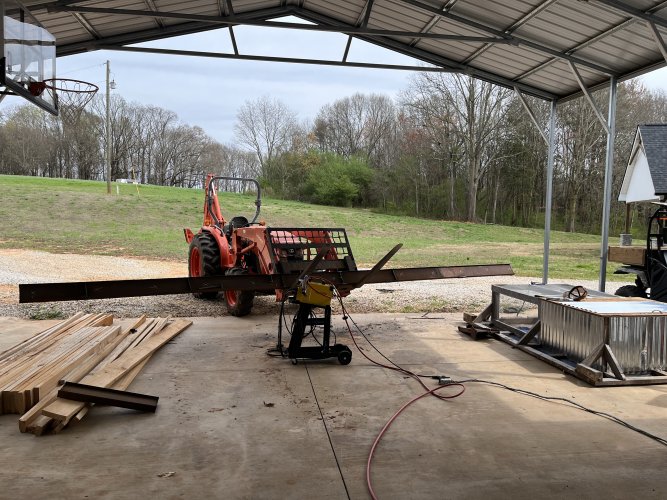

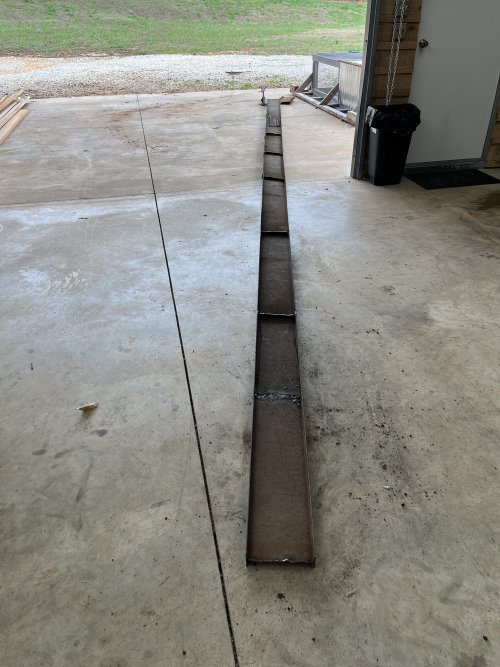

Making a big header for the sawmill shack. Scavenged this trailer frame. Plasma cutter and welder were getting a workout today. About ready to attach boards to the beam.
np307
Well-known member

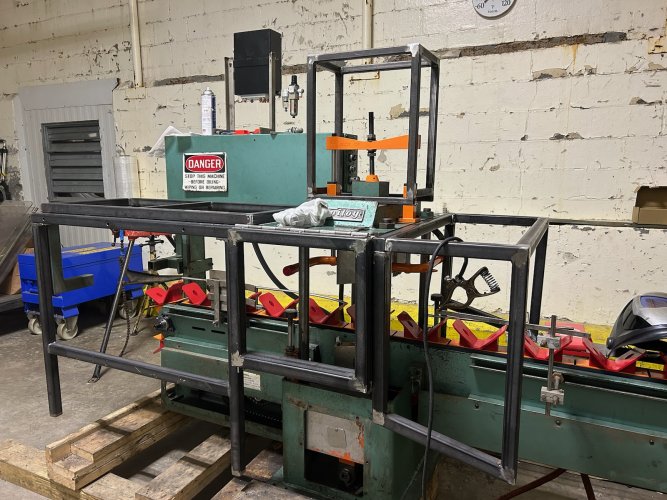

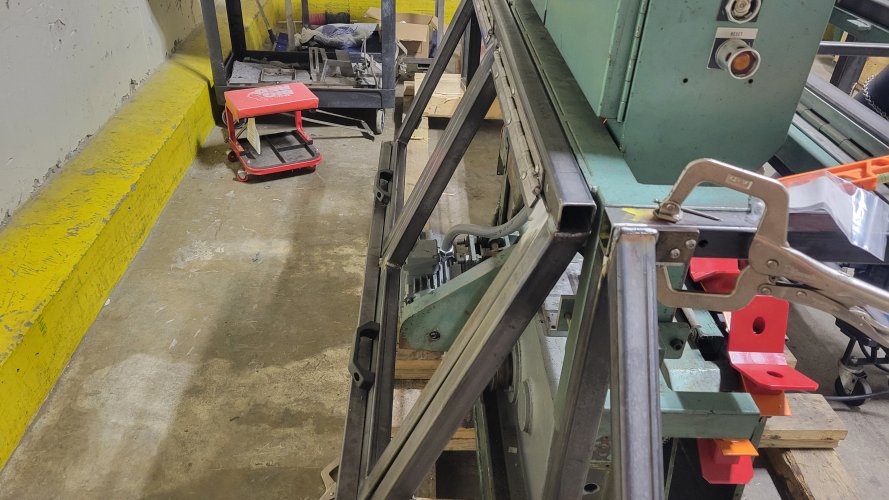

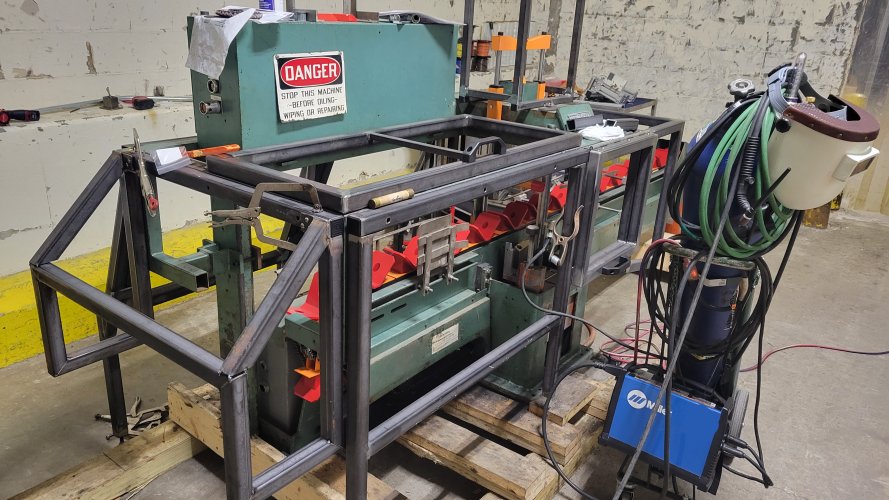

Well, last week a big hurdle got thrown the company's way. My boss (the owner) broke his leg riding a dirt bike and is out of commission for 2 months. So that means I've been solo on a lot of stuff and the lead when the part time guys are around. Biggest thing I've been tackling is getting this guarding fabricated. It will all be covered in Lexan panels to keep people from sticking their hands in the machine while it's running. Plenty of other playes spinning too, hopefully wrapping up some of those projects soon. We got no drawings to follow for this, just minimum/maximum clearance specs and had to come up with the design. Pretty happy with it so far.
Mallardsx2
Well-known member
- Joined
- Apr 4, 2015
- Messages
- 3,528

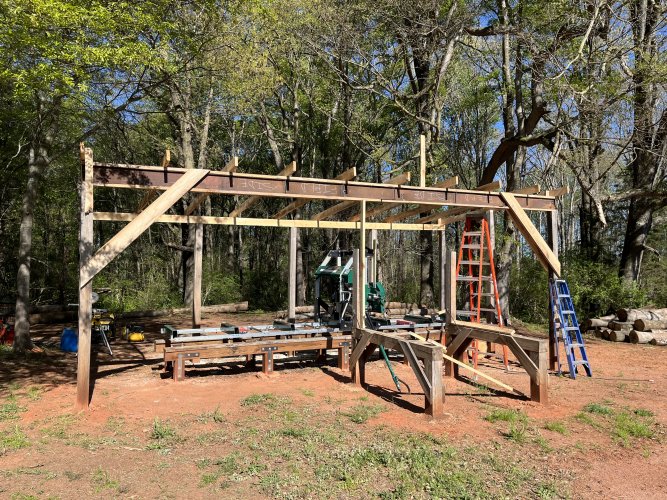

Got the header beam I welded together put up.
I’ll go back to the woodworker forum now…. lol
I’ll go back to the woodworker forum now…. lol
np307
Well-known member
That has more structural integrity than the thin wall tubing one plant wanted us to us to support a load-bearing wall that they cut down without supporting first.
