Google Earth Overlays

Bambistew

Well-known member
Joined
Dec 10, 2002
Messages
6,212
Location
Chugiak, AK
I'm always looking for another layer to add to Google Earth. Found this one (wasn't hard I admit) but thought I would share. Unfortunately I can't get Alaska to work for some reason, but other states in the west worked fine.

http://apeoid.com/kmz-kml-padus/


Hem

Well-known member
Joined
May 20, 2009
Messages
1,932
Location
Three Forks, Mt
I like it...but I would like it better if it was see-through.Saves a click,you know what i mean?;)

Joined
Aug 14, 2013
Messages
280
Location
Billings, MT
I like it...but I would like it better if it was see-through.Saves a click,you know what i mean?;)

Most definitely. 50-75% transparency and the correct colors. :D Still, not bad. If I can figure out how to export a QGIS file to a KMZ-KML, I would darn near have what we need!


Bambistew

Well-known member
Joined
Dec 10, 2002
Messages
6,212
Location
Chugiak, AK
You can create a sub-folder, move the shape files into the folder and change the properties. For example, create a Forest Service folder, move all the FS shapes, and then go to properties,and change the transparency to 50% and color green.

I don't use GIS programs enough to know how to get the info out of it, but I know its possible to export a KML/KMZ files from Arc GIS.

Joined
Aug 14, 2013
Messages
280
Location
Billings, MT
I spent a few lunch hours at work compiling data from the State of Montana and other random sites that looked legit and then a couple weeks after color coding the data. Had the landowner info, color coding like the BLM maps, and had management areas and other little things in it like aerial photos of each individual county. Of course I was using QGIS since it was free and it might not have had the functionality like I wanted. Have not really played with ArcGIS. Its amazing what info is free and available to the public if you know how to use it and want to spend hours playing and researching.


Randy11

Well-known member
Joined
Jan 12, 2009
Messages
6,109
I don't use GIS programs enough to know how to get the info out of it, but I know its possible to export a KML/KMZ files from Arc GIS.

You can do it within Google Earth Pro, which is now free. Shapefiles open directly in to pro, then you can right click, save as, and export as .kmz. Or if you're just using it for yourself, keep it as a shapefile.

Last edited:

WT_in_MT

New member
Joined
Jan 12, 2008
Messages
272
I like it...but I would like it better if it was see-through.Saves a click,you know what i mean?;)

Click on "Adjust Opacity," which is next to the magnifying glass on the left side. Move slider to desired transparency.

It appears the data for MT is not all that current.


mtmiller

Well-known member
Joined
Jul 7, 2001
Messages
10,379
Location
Montana
It appears the data for MT is not all that current.

WT, I agreed. Do you know how to turn off some layers? I noticed the prairie dog ACEC is on there. It no longer exists and covers up some of the other layers.


Nameless Range

Well-known member
Joined
Jun 6, 2013
Messages
3,855
Location
Western Montana
I don't know about map services for other states, but in Montana we have a plethora of GIS info.

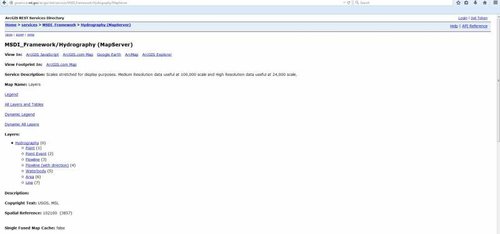

Once you have followed Randy11 advice and gotten Google Earth Pro, go here. http://gisservice.mt.gov/arcgis/rest/services. Click through the directories until you get to the one you want at the mapserver level. At the top you'll have a choice of the API you want to use to view the data. Choose Google Earth or save the KMZ connection file and drag it into your Pro table of contents.

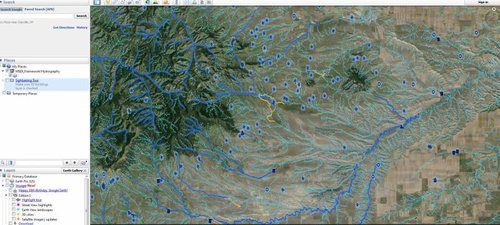

Keep in mind, some of this data is probably scale dependent. So you may not see it till you are zoomed into a certain level. I haven't fiddled too much with map services and Google Earth, but I am sure other states have similar services. This data isn't a static flat file, but is being served to your google earth through the wire, and is therefore probably the most up-to-date version of the data publicly available.


Last edited:

ScottP

Active member
Joined
Jan 29, 2013
Messages
377
Location
Oregon
I spent a few lunch hours at work compiling data from the State of Montana and other random sites that looked legit and then a couple weeks after color coding the data. Had the landowner info, color coding like the BLM maps, and had management areas and other little things in it like aerial photos of each individual county. Of course I was using QGIS since it was free and it might not have had the functionality like I wanted. Have not really played with ArcGIS. Its amazing what info is free and available to the public if you know how to use it and want to spend hours playing and researching.

You should be able to easily save your shapefiles to KMZ in QGIS. My install is too old to open right now with my recently updated OS, but in QGIS 2.4 you could save any shapefile directly to KMZ. You'll have to play around with it, but its one of the choices in the dropdown menu of what type file you want to save as.

What I couldn't do, was get a high resolution geo-enabled PDF of the entire mapspace exported to use on my phone app. Its a one-clicker in ArcGIS.


WT_in_MT

New member
Joined
Jan 12, 2008
Messages
272
WT, I agreed. Do you know how to turn off some layers? I noticed the prairie dog ACEC is on there. It no longer exists and covers up some of the other layers.

Expand the Montana layer as shown in the first pic below. Then click on the polygon you want to turn off, also shown in the first pic. That'll highlight it in the Montana layer. Uncheck that particular highlighted polygon.





P.S. PM me your email address and I'll send you something that may be helpful. :D


mtmiller

Well-known member
Joined
Jul 7, 2001
Messages
10,379
Location
Montana
Expand the Montana layer as shown in the first pic below. Then click on the polygon you want to turn off, also shown in the first pic. That'll highlight it in the Montana layer. Uncheck that particular highlighted polygon.

Sweet. Apparenly I didn't "double click" enough times the first time I tried that.:D

PM sent.

Joined
Aug 14, 2013
Messages
280
Location
Billings, MT
You should be able to easily save your shapefiles to KMZ in QGIS.

If I remember right I think I got something to work but it was not a clean KML file. It looked more like a JPG overlay where colors looked right, but you could not click on individual parcels and get info or anything like that. Ill have to see if I can find my files and try it again just to be sure. Its been a year or so since I have played much with it. Either way, finding out Google Earth Pro is now free made my day so I had to play with it over lunch.


WapitiBob

Well-known member
Joined
Oct 20, 2004
Messages
2,837
Location
Bend, Orygun

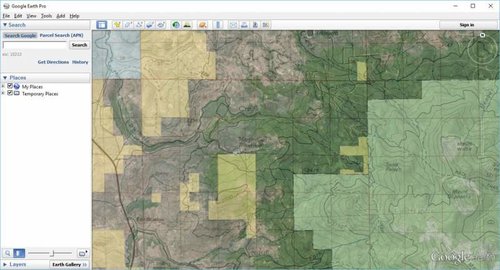

GeoCommunicator dot gov website, SMA, arcgis server, open or save for GE


Attachments

  • Clipboard01.jpg
    47.7 KB · Views: 524
Last edited:

skifunk2

Member
Joined
Jul 27, 2015
Messages
36
Location
PA
The online mapping programs are truly a wealth of information, especially with all the GIS layers now available. I use a non-online ArcGIS Program for my day job, and I have recently started compiling data layers to generate my own personal maps for states across the country. I've got so much information for Colorado, that my map becomes totally incomprehensible with all the layers on. I find its almost as much fun trying to figure out the best places to hunt, as the actual hunt itself!!
