Carbon fiber Model 70 build
- Thread starter p_ham
- Start date
p_ham
Well-known member
All it takes is money!
Lrhxr9
Active member

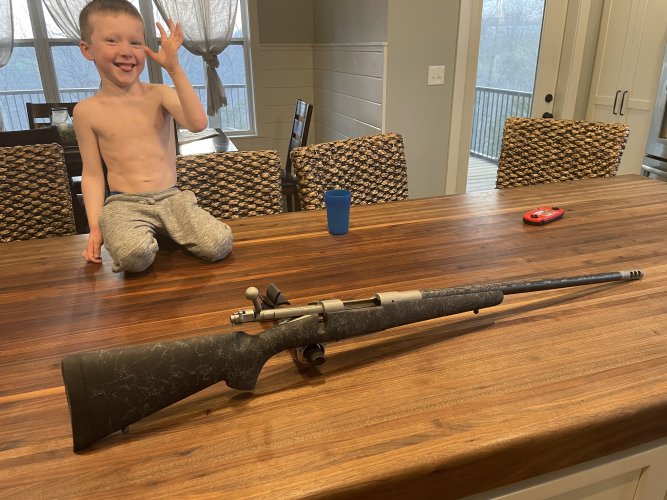

Model 70 classic stainless 270 WSM ~2004. Had problems with accuracy and rings/mounts coming loose. I Decided to rebuild the gun since i have always wanted to do a build. Finished product now wears the original action, bolt, bottom metal and trigger. The stock was replaced with an hs precision. Barrel is a proof research carbon sendero light 24”. Rechambered to 6.5 prc. Cerekoted all metal to titanium and installed a custom brake. Box and follower also gave us feed problems with the new longer round. We used a wyatts outdoor center stack box and follower and the gun feeds flawlessly even with the 156 bergers. Just thought id leave an update of another build. It turned out exactly as i had planned.
What’s the brake?
millerkiller77
Well-known member
We're you able to rework the factory trigger?
You mentioned feed problems, was this a COAL issue or something else?
Lrhxr9
Active member
It was a brake that the gunsmith cnc’s himself.
Lrhxr9
Active member
The trigger had been lightened prior to this work. I dont reload and i dont have the numbers in front of me. But i think i remember correctly in the 6.5 prc is .15-.25 longer than the 270 wsm
p_ham
Well-known member
Update!

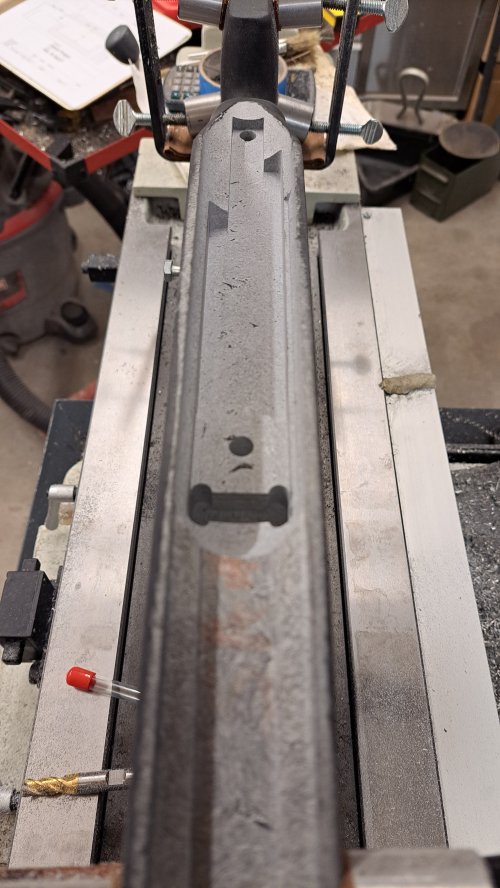

The AG flattop came in, and I got to work building a long overdue stock fixture for the mill.
It's keyed to the table and all the important holes were drilled and tapped once it was clamped in place. It uses the action screw holes as reference and is adjustable from the tiny Howa Mini all the way out to a Mauser length action. I'm able to flip the stock over without losing my datum points which was one of the major goals of the assembly.

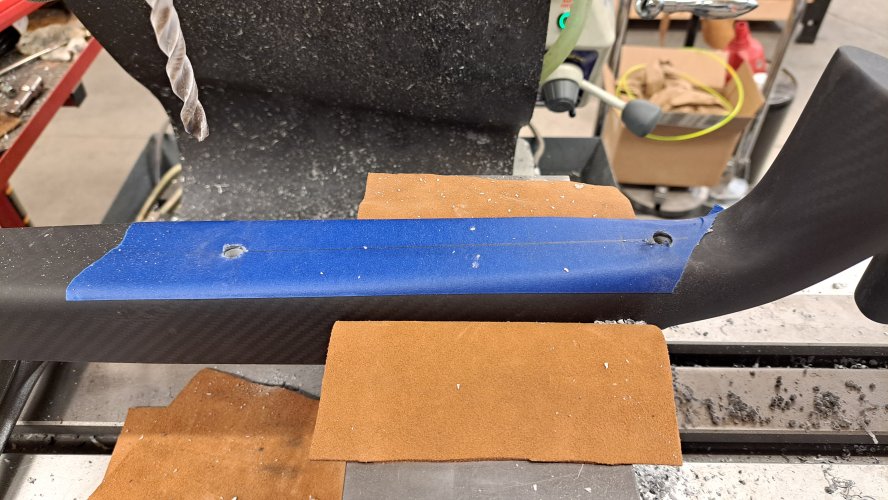

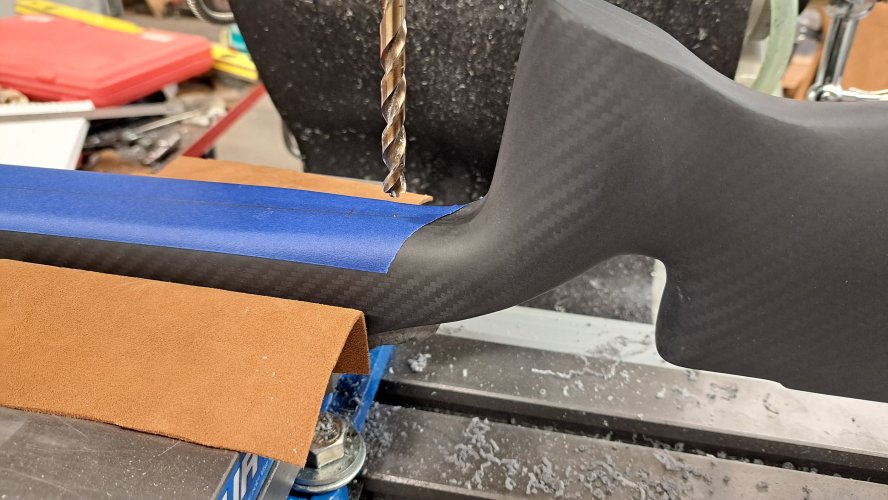

The action screw holes were layed out and drilled into the stock.

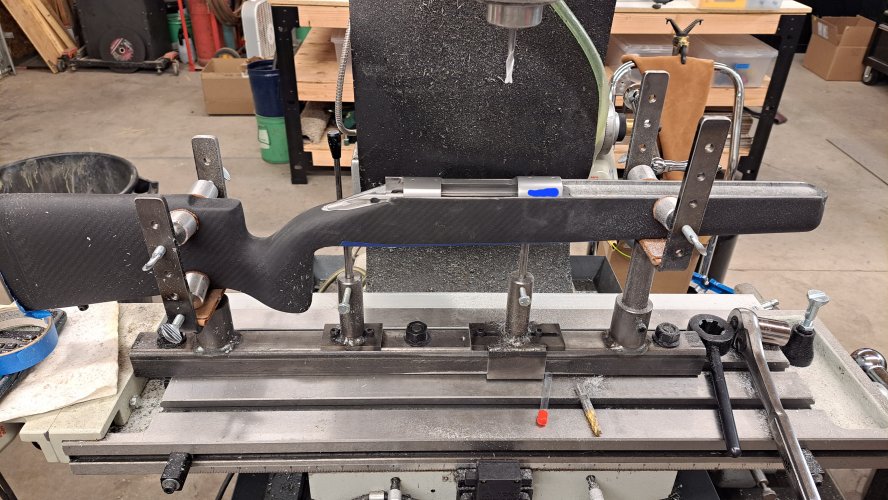

The stock was then set up in the newly made fixture and started chasing numbers. I still need to cut the magwell, trigger pocket, inlet the bottom metal, and barrel channel. Cutting up an expensive, long lead time stock isn't stressful at all!
The AG flattop came in, and I got to work building a long overdue stock fixture for the mill.
It's keyed to the table and all the important holes were drilled and tapped once it was clamped in place. It uses the action screw holes as reference and is adjustable from the tiny Howa Mini all the way out to a Mauser length action. I'm able to flip the stock over without losing my datum points which was one of the major goals of the assembly.
The action screw holes were layed out and drilled into the stock.
The stock was then set up in the newly made fixture and started chasing numbers. I still need to cut the magwell, trigger pocket, inlet the bottom metal, and barrel channel. Cutting up an expensive, long lead time stock isn't stressful at all!
cahunter805
Well-known member
- Joined
- May 27, 2014
- Messages
- 2,464
That is a good looking fixture. Will you be installing pillars? What bottom metal?
p_ham
Well-known member
Bottom metal is the factory winchester. It will be getting pillars. They're supposedly not necessary on the CF stocks but it won't hurt.
noharleyyet
Well-known member
p_ham
Well-known member
All for the low price of 2 woven baskets every 2 weeks.
noharleyyet
Well-known member
...and a merkin
millerkiller77
Well-known member
That fixture is awesome!
Man, he’s got a bunch of high maintenance clients!!! Needing to make a specific jig and all…
TradeGun.62
Active member
OK, now I'm following along. Why do I feel like this is going to cost me some money!?!?!
Join the club! All the cool kids are doing it!OK, now I'm following along. Why do I feel like this is going to cost me some money!?!?!
Scott85
Well-known member
- Joined
- Nov 22, 2018
- Messages
- 2,689
So cool to see the jig in action.
BackofBeyond
Well-known member
First time I’ve ever been one of the cool kids!!!
That’s probably more of the case, I just wanted to call myself a cool kid!
