This one will be up for grabs when it's done.
20" 7mm-08 fluted sporter 5/8-24 muzzle threads
Fluted bolt body
Mesa bottom metal
Mountain Tactical recoil lug and bolt stop
Stockys carbon fiber sporter stock

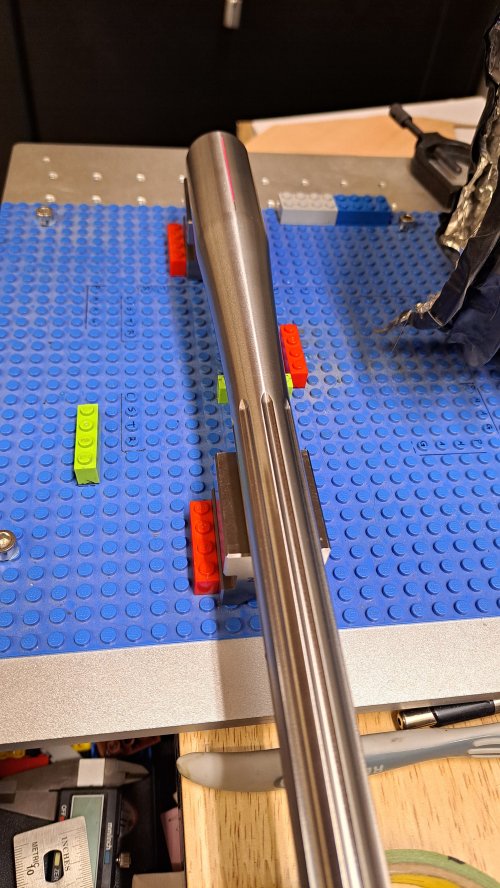

I started out by marking the flute locations with the laser. This greatly reduces the hassle of timing the flutes.
![20230608_175427.jpg 20230608_175427.jpg](https://www.hunttalk.com/data/attachments/250/250530-5b827d997ace44e2416c0a3bab8dcab0.jpg)

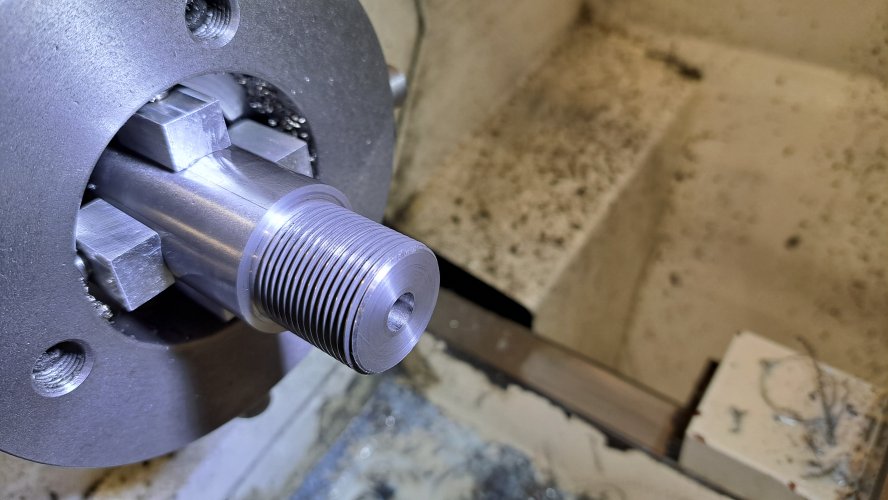

With the barrel in the lathe, the bore gets dialed and pre bored. The receiver threads are then cut for a class 3 fit.
![20230608_211619.jpg 20230608_211619.jpg](https://www.hunttalk.com/data/attachments/250/250531-f9670169845494741d106fd3ac984772.jpg)

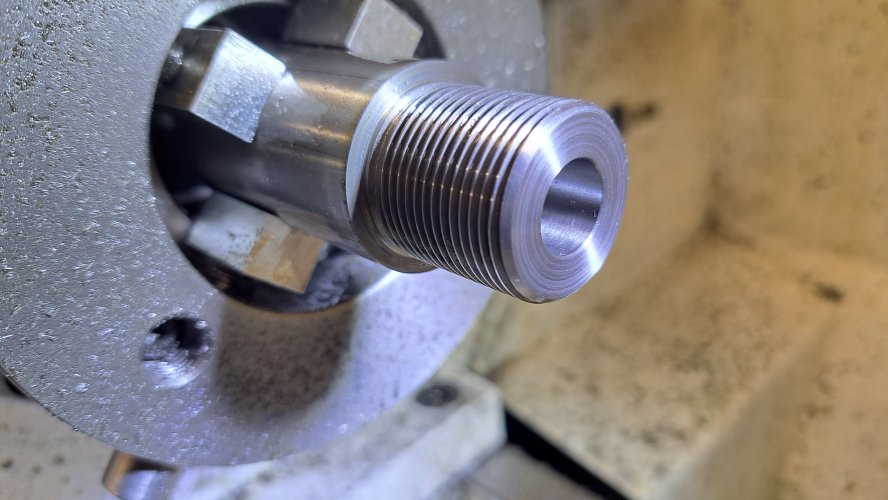

Next the chamber gets cut.
![20230609_213936.jpg 20230609_213936.jpg](https://www.hunttalk.com/data/attachments/250/250532-60e99be7077e0f0d77167281302de212.jpg)

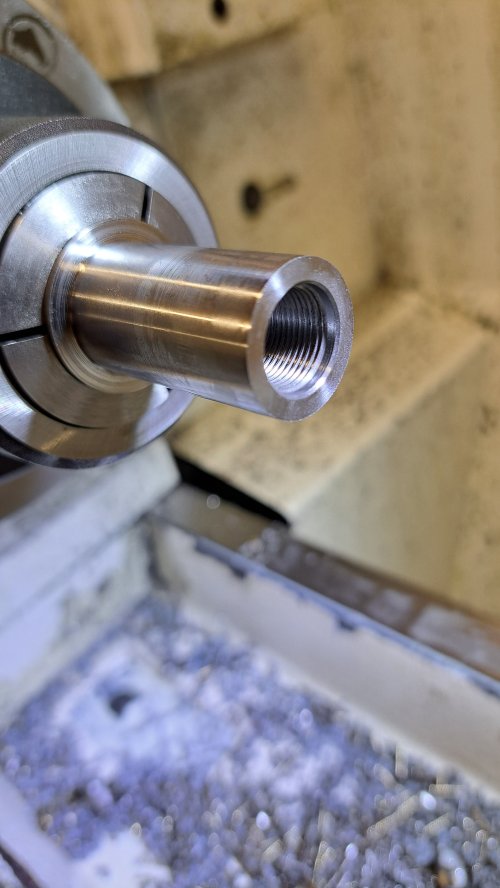

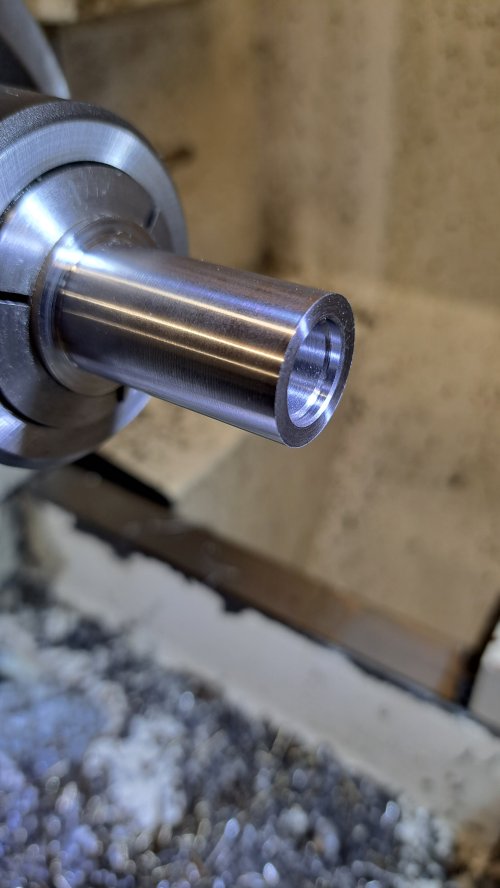

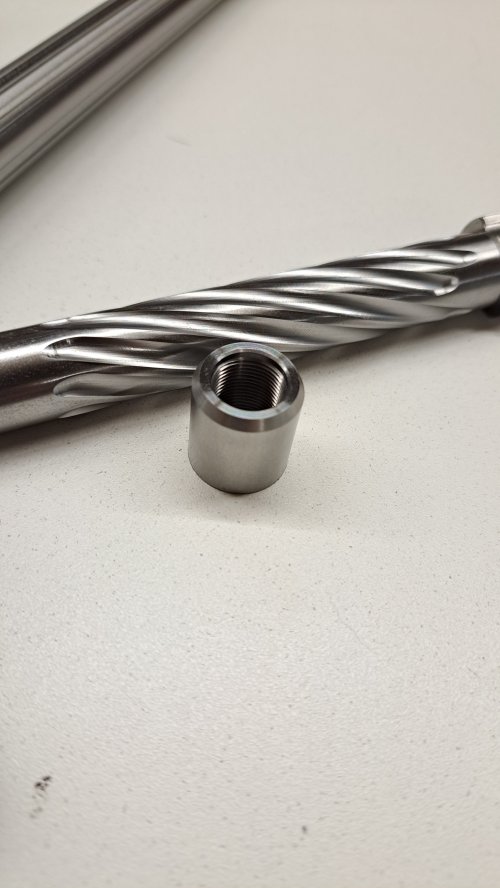

Since the barrel muzzle diameter is .65" I'm adding a permanent thread adapter to facilitate 5/8-24 accessories.
![20230619_184715.jpg 20230619_184715.jpg](https://www.hunttalk.com/data/attachments/250/250533-b1520fbf1200cde5d6a9f2bb2bb1b237.jpg)
![20230619_185934.jpg 20230619_185934.jpg](https://www.hunttalk.com/data/attachments/250/250534-5d1ab8cebdf629040f55377cc5ac3cdf.jpg)
![20230619_225459.jpg 20230619_225459.jpg](https://www.hunttalk.com/data/attachments/250/250535-e66938b3d4be120069e5dfa638e3b89e.jpg)
