Me as well. I've never been a lever action guy (not at,all) but a gun designed and built from the bore to butt by a single individual is something to be admired. I've ALWAYS been a DIY kinda guy.


p_ham

Well-known member
Joined
Jul 6, 2017
Messages
1,160
Location
Fallon, NV
Had to spend a week over in The People's Republic for work, not much progress on the gun.

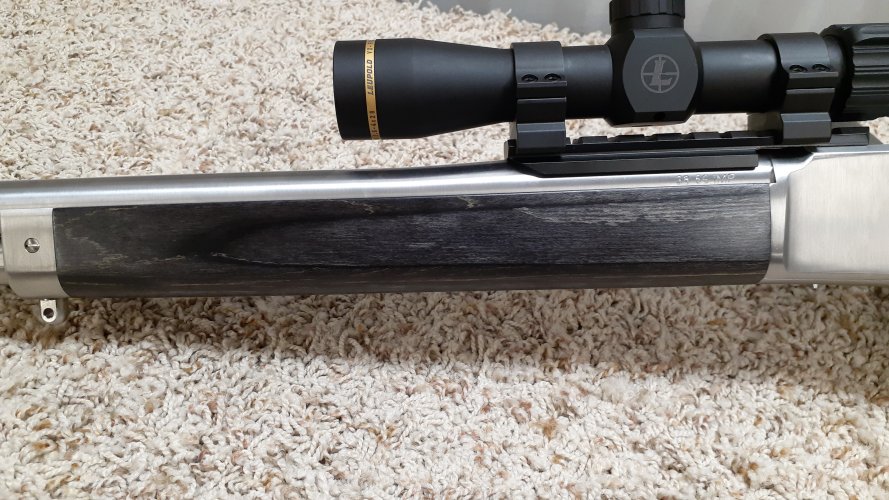

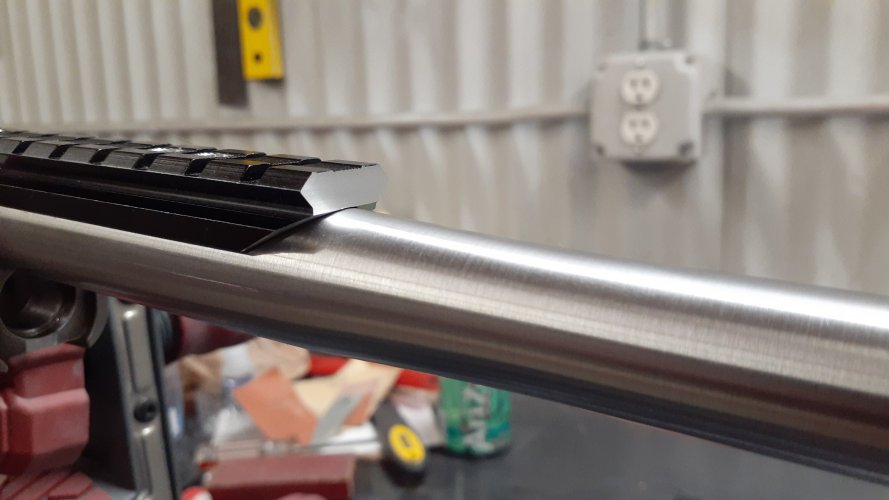

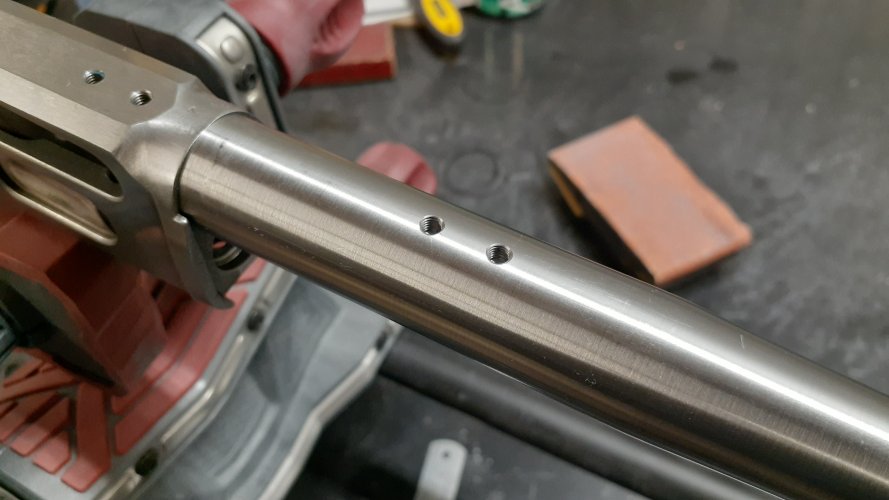

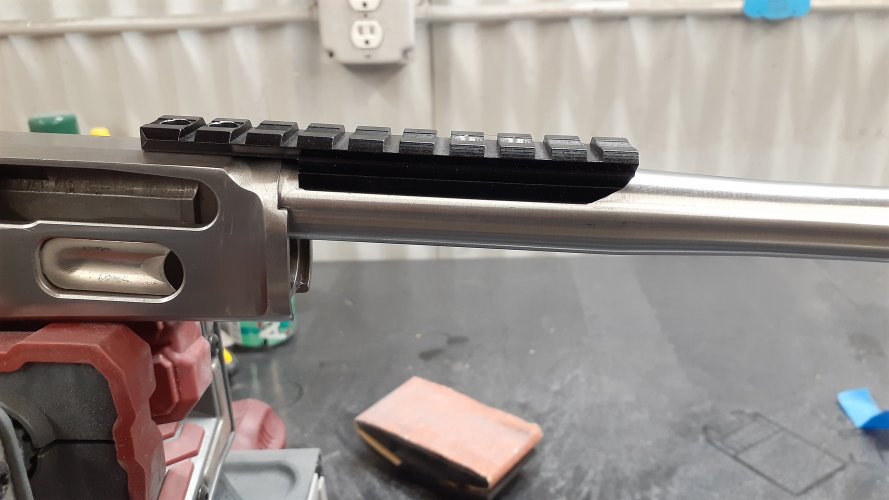

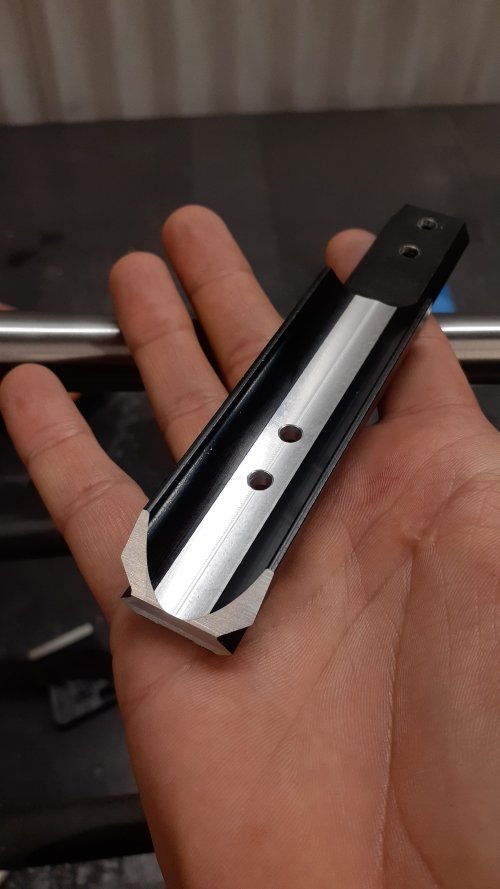

Cut down and re profiled the XS scout mount to fit the new contour. Drilled and tapped the barrel to mount the front end of the rail. I was thinking of bedding the rail to the barrel but it looks like it sits on there fine.
Started polishing internals and bedded the forend today.


Attachments

  • 20220108_214157.jpg
    2 MB · Views: 12
  • 20220108_214131.jpg
    1.2 MB · Views: 12
  • 20220108_213938.jpg
    2.2 MB · Views: 12
  • 20220108_213924.jpg
    1.9 MB · Views: 11

p_ham

Well-known member
Joined
Jul 6, 2017
Messages
1,160
Location
Fallon, NV
I'm just discovering this thread and haven't read the entire thing yet, but I have to ask - Isn't this just another way of saying .38-56?

the .38-56 is a well known cartridge that's been around for over a century.
Correct. This is the "improved" version of the 38-56.


Hammsolo

Well-known member
Joined
May 16, 2020
Messages
830
I am enjoying the process. I love the details of the story and this rifle.


EastTNHunter

Well-known member
Joined
Jun 13, 2018
Messages
983
Dang, I envy your ability to access and master the equipment that you’ve used to make this project. And the product looks great so far, as well!


p_ham

Well-known member
Joined
Jul 6, 2017
Messages
1,160
Location
Fallon, NV
Since I modified the carrier to accept the longer cartridge, I made a new carrier rocker and moved the hook further back to retain strength.
Had to adjust the timing of the lever and carrier. Seems like it works pretty well, haven't run it hard yet.


P.S. hope you like the video, had to tape my phone to a stool like some kind of poor.


cahunter805

Well-known member
Joined
May 27, 2014
Messages
2,175
Since I modified the carrier to accept the longer cartridge, I made a new carrier rocker and moved the hook further back to retain strength.
Had to adjust the timing of the lever and carrier. Seems like it works pretty well, haven't run it hard yet.


P.S. hope you like the video, had to tape my phone to a stool like some kind of poor.
Looks like the timing is pretty much spot on. Feeds pretty well also it seems. This project is shaping up very nicely.


p_ham

Well-known member
Joined
Jul 6, 2017
Messages
1,160
Location
Fallon, NV

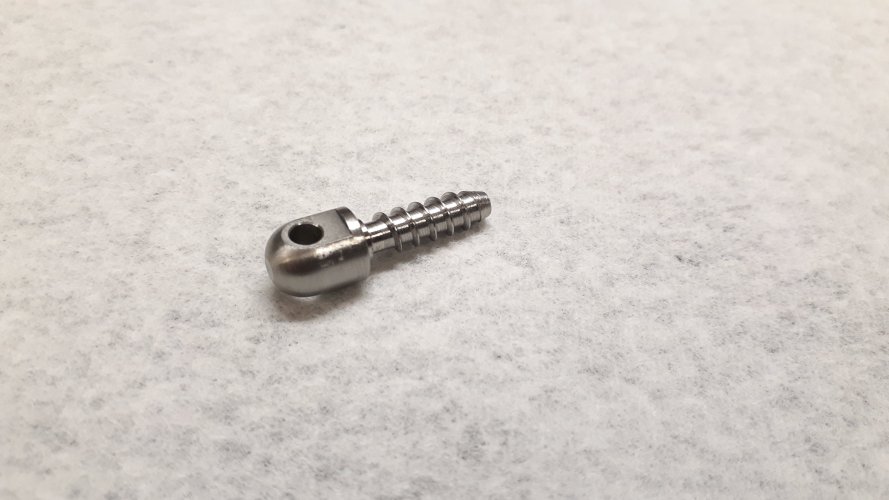

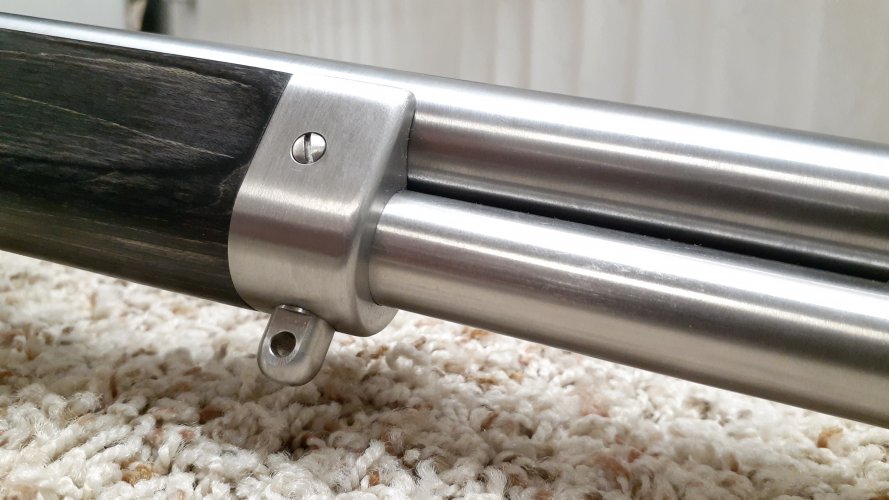

Been doing the monotonous little stuff that always adds up at the end. I polished everything I could get to in the action, did some trigger work, safety delete, and the final piece of the puzzle: the rear sling stud. I didn't need to make it but I figured I'd already made everything thus far so...

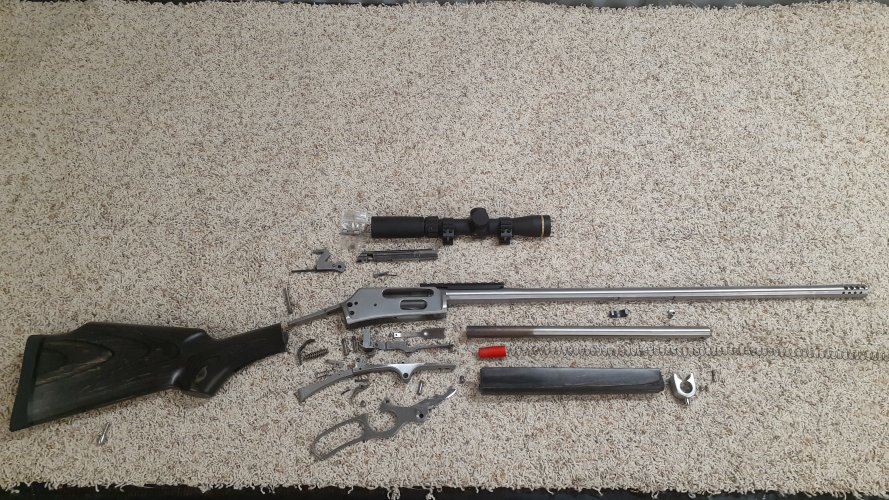

I thought exploded view was neat, of course I thought of it after the rail was torqued down.
I'll get some better photos this weekend, and hopefully a range report.


Nhenry

Well-known member
Joined
Dec 19, 2020
Messages
580
Location
Kansas
Been doing the monotonous little stuff that always adds up at the end. I polished everything I could get to in the action, did some trigger work, safety delete, and the final piece of the puzzle: the rear sling stud. I didn't need to make it but I figured I'd already made everything thus far so...
View attachment 209700
I thought exploded view was neat, of course I thought of it after the rail was torqued down.
View attachment 209697
I'll get some better photos this weekend, and hopefully a range report.
View attachment 209698
View attachment 209699
View attachment 209701
I love this project a bunch. You did a great job

Last edited:

p_ham

Well-known member
Joined
Jul 6, 2017
Messages
1,160
Location
Fallon, NV

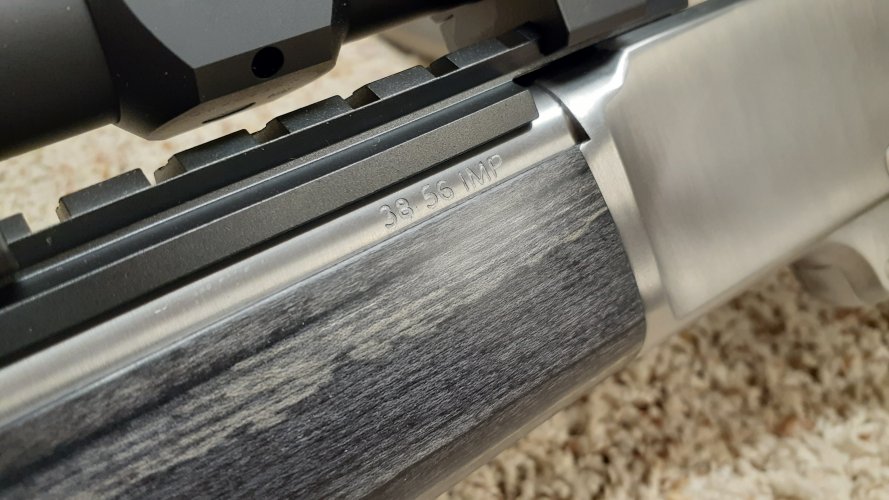

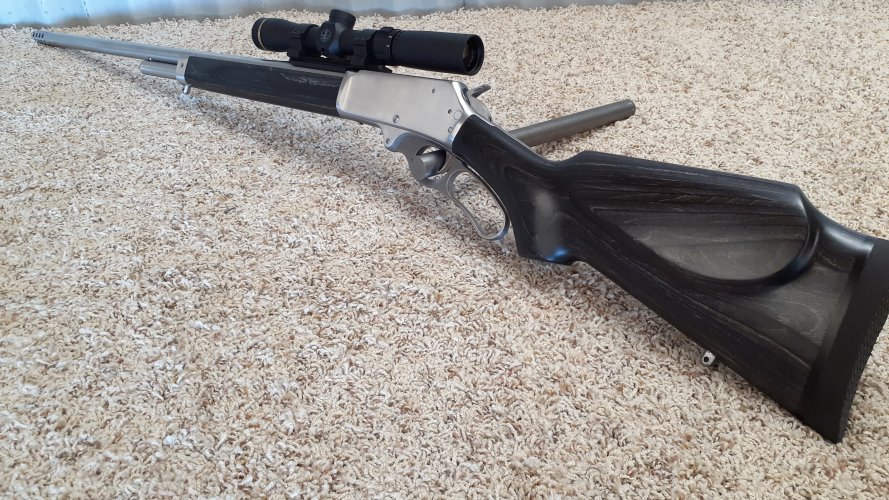

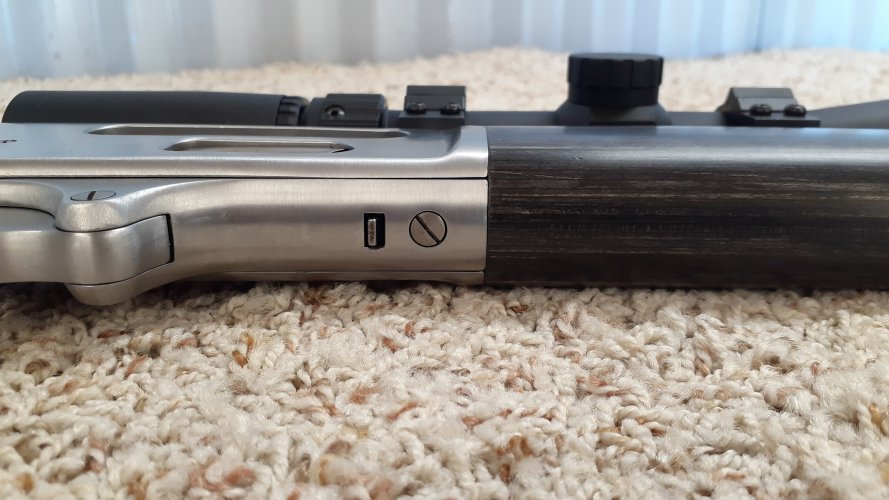

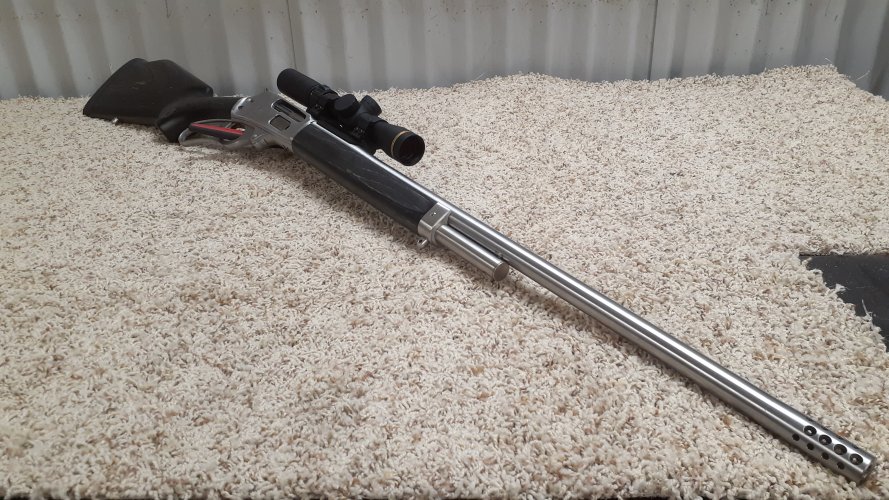

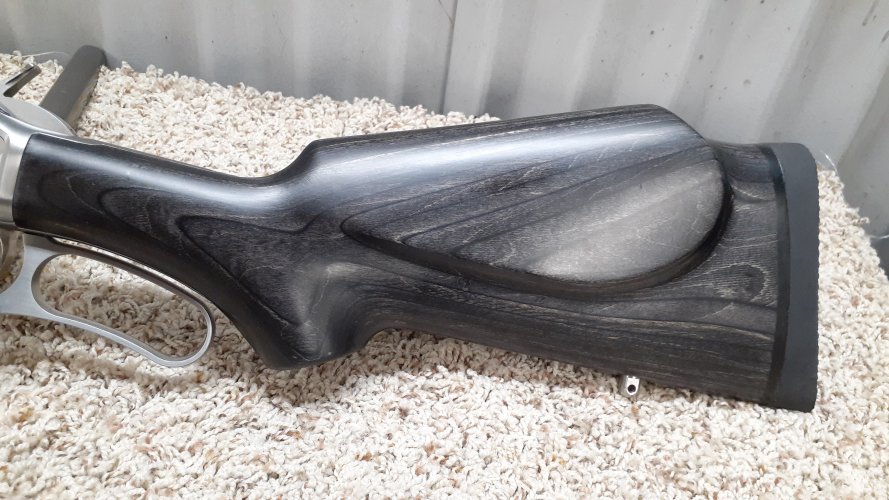

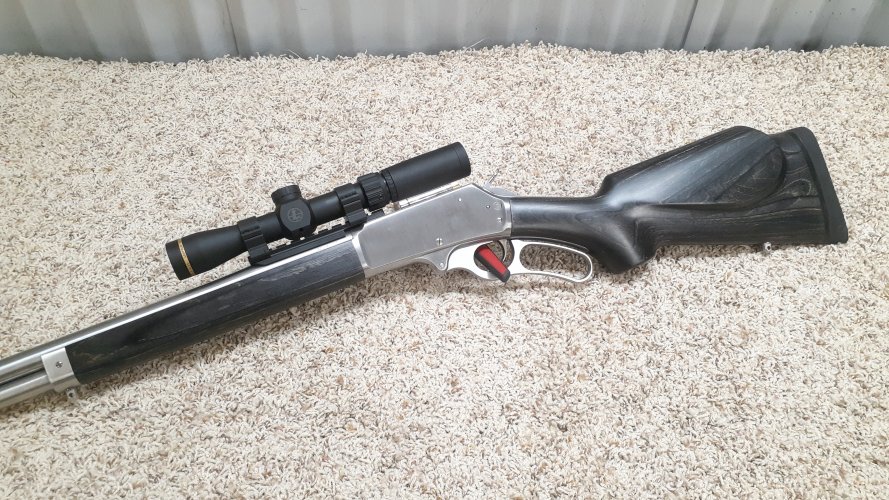

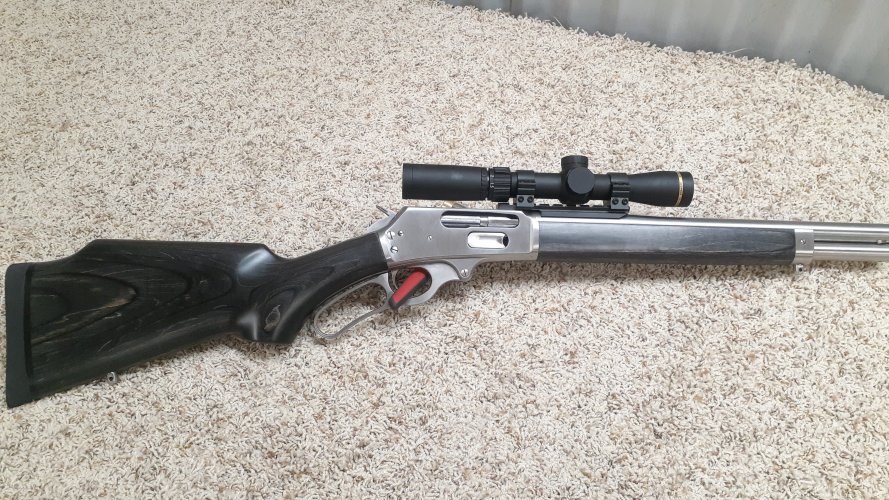

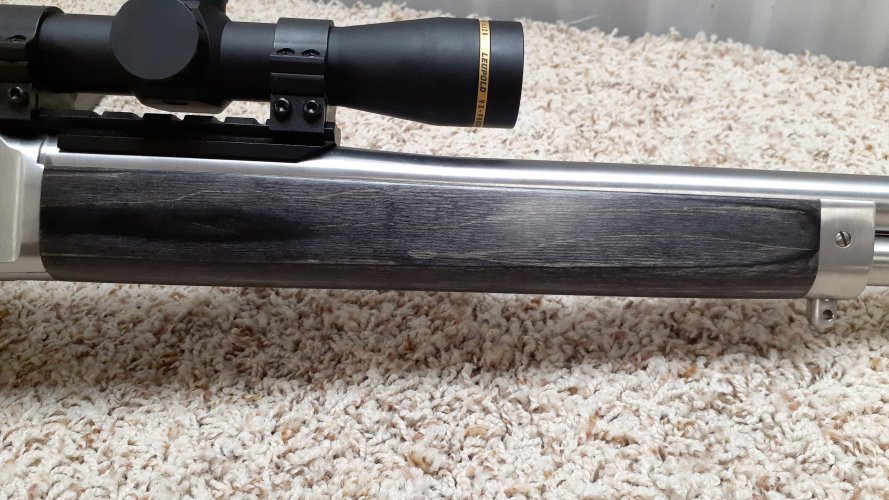

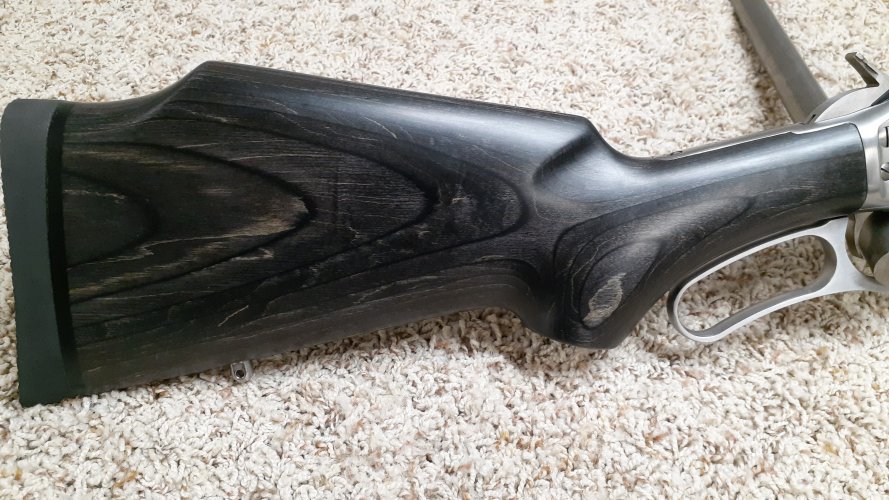

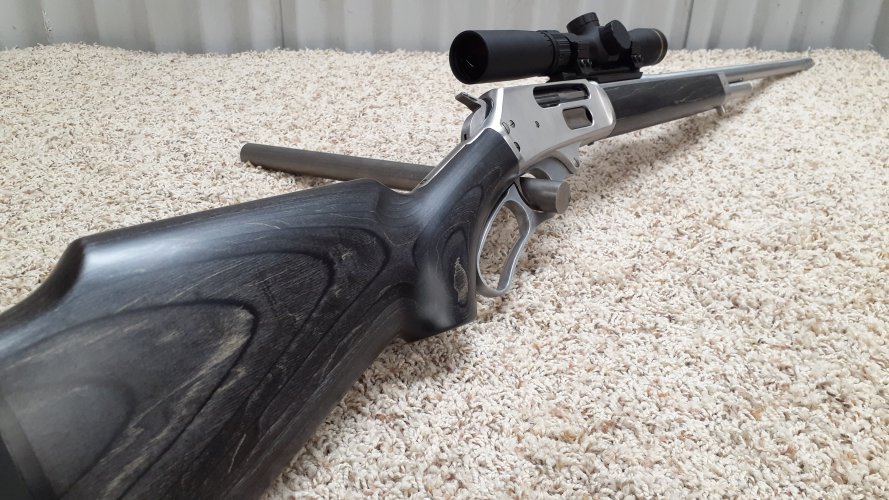

Better photos as promised. Didn't make it to the range today, hopefully tomorrow.
I don't know if it's better to leave these as thumbnails or full size?


Attachments

  • 20220122_152906.jpg
    2.8 MB · Views: 15
  • 20220122_153010.jpg
    2.7 MB · Views: 15
  • 20220122_152918.jpg
    2.6 MB · Views: 16
  • 20220122_152806.jpg
    2.1 MB · Views: 18
  • 20220122_152729.jpg
    2.3 MB · Views: 19
  • 20220122_152643.jpg
    1.4 MB · Views: 18
  • 20220122_151419.jpg
    1.4 MB · Views: 17
  • 20220122_151555.jpg
    2.4 MB · Views: 16
  • 20220122_151827.jpg
    3.6 MB · Views: 17
  • 20220122_152531.jpg
    2.9 MB · Views: 17
  • 20220122_153021.jpg
    2.6 MB · Views: 18
